Applied Measurements Ltd. (UK) - Challenge – To Evaluate the Aerodynamics of Scale Models.
Scale Engineering design and manufacture wind tunnels, industrial test rigs and research equipment for schools, universities and the commercial sector. Scale Engineering’s newly designed Scale Wind Tunnel can test the aerodynamics of scale models using the same principles as a full sized version, without the need for a huge test laboratory. Recently used at Purbeck School’s Science Fair, the Scale Wind Tunnel uses two single point load cells and Intuitive2-L digital indicators enabling students to evaluate, amend and improve their LEGO model design.
How Does It Work?
The Scale Wind Tunnel has two OBUG-5kg single point load cells fixed at 90˚ to each other installed on a base plate inside the tunnel. Once the scale model is mounted inside the tunnel, the air is forced into the tunnel through the laminar air intake and along a honeycomb structure to decrease the air turbulence. As the tunnel narrows, the airspeed increases, allowing one OBUG single point load cell to measure the lift force and the other to measure the drag force (the resistance generated by the model inside the tunnel). The results are relayed to two separate Intuitive2-L digital indicators for analysis, enabling the students to make necessary adjustments to their design.
90° Mounting is possible with OBU single point load cells.
OBU Single Point Compression Load Cells:
- Dual Cantilever Design
- IP65 Protection Rating as Standard (IP67 Optional)
- High Accuracy <±0.03% of Rated Capacity
- Sense Wire Facility
- Moment Insensitive
- Aluminium Construction – Light Weight and Low Cost
- Customisation Available
- Optional Integration on Finished Weighing Platform
Intuitive 2-L load cell digital indicators offer simple menu free operation.
Intuitive2-L Load Cell Digital Indicators:
- 6 Digit Display
- Simple and Easy to Use – No-Menu Programming
- IP65 Protection Rating
- 20-Bit A/D Converter
- Can Power up to Four 350Ω Strain Gauge Load Cells
- Modular Construction
- Variety of Display Colour Options

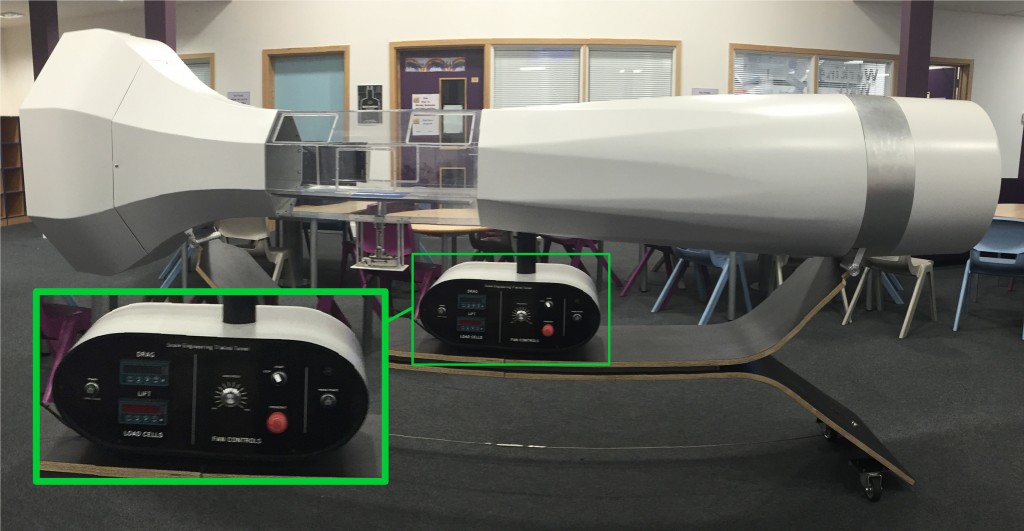

Each Intuitive2-L digital indicator used different digit colours to easily identify the lift force and the drag force results.
The indicator’s bright 6-digit LED display offers superb resolution and stability all thanks to its fantastic 20-bit A/D converter and highly stable strain gauge bridge excitation source. The Intuitive2-L digital indicator is IP65 protection rated and comes with a variety of digit colour options to suit your application environment. For example, to easily differentiate the lift force and the drag force results the Scale Wind Tunnel used one indicator with a red display and the other green. We chose the Intuitive2-L digital indicator because of its modular construction and variety of optional alarm relays, analogue and digital outputs, enabling the Intuitive2-L to be tailored to the exact specification of the Scale Wind Tunnel.
