Minebea Intec Industrial Scale Combics®

The industrial scales series Combics combines precision with diversity for the pharmaceuticals, chemical and logistics industries. For counting, manual formulation or checkweighing the guaranteed resolution of up to 60,000 divisions provides precise measurement results which minimise production rejection and optimise production costs. Customers choose the perfect industrial scale for their application from three indicator performance levels, various platforms and accessories. Even for hazardous areas there are specifically designed solutions meeting all international requirements.

Read More

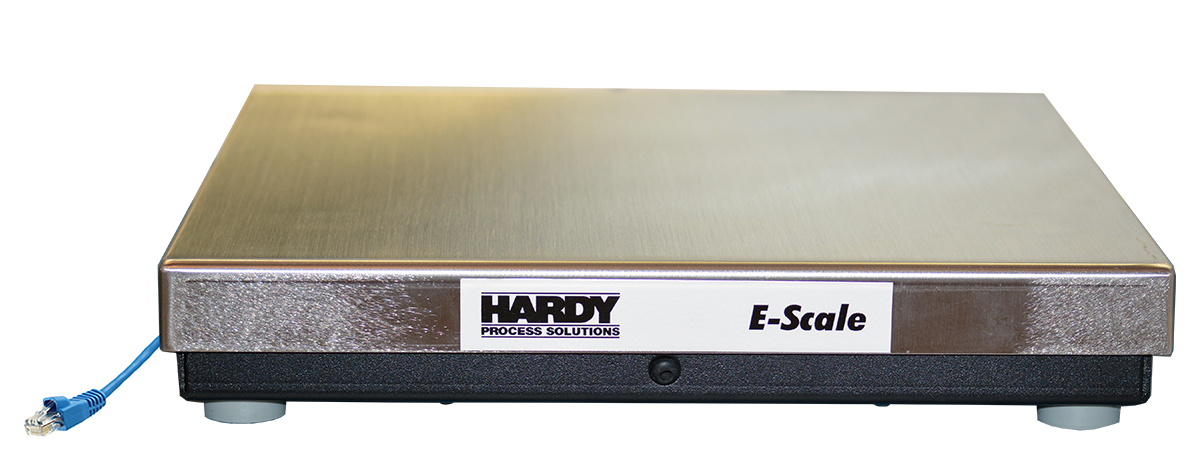

Hardy E-Scale Industrial IoT-Ready Intelligent Scale

The new Hardy E-Scale Bench scale series is the world's first IIoT-ready (Industrial Internet of Things) scale base. It includes an integrated Hardy weight processor for direct network connection for either EtherNet/IP® or Profibus-DP® networks. Depending on configuration, the E-Scale offers complete flexibility in size and capacity for use in a wide range of weighing applications. E-Scales eliminate possible failure points and save the cost of extra splice-boxes and other components.

With their rugged construction and stainless steel tops, E-Scales are a great fit for dry food processing, laboratory and industrial installations. The E-Scale line of bench scales comes in a variety of configurations with a built-in interface for direct connection to a PLC, PAC, DCS or PC. All E-Scales come standard in 12”x12” and 24”x24” sizes, and range in capacity from 33 lbs – 1300lbs (15 kg to 600 kg).

The covers are all stainless steel for durability. The bases have no bearings, spirit levels, or moving parts that can be damaged or wear out. They come standard with Hardy Process Toolbox features, including Waversaver®, C2®, Webserver, and Rockwell Automation integration tools such as Faceplates, and Add-on-profiles.

E-SCALE-6500**

IIoT ready scale with integrated weight processing and communications. No DIN or panel space is required. The E-Scale-6500 delivers stable processed weight with a resolution of 1:10:000, and an update speed of 110 updates per second (processor, display and comm.). Communications protocols supported include:

• EtherNet/IP (-EIP models)
• Ethernet UDP
• Ethernet TCP/IP(Embedded Webserver)
• Modbus RTU
• Modbus TCP (-EIP models)
• Profibus-DP (-PB models)

** User must supply 24VDC to the scale

E-SCALE-6610*

Capable of powering up to 20 scales daisy chained up to 50 ft from beginning to end to a single Hardy HI 6600 Gateway Module. The Gateway Module provides a Single Ethernet connection back to the PLC/PAC or PC – No additional power is required! Gateway Module has an optional panel mount multichannel display that can be used to operate connected E-Scales.

HI6600 Gateway communications include:

• EtherNet/IP (-EIP models)
• Profibus-DP (-DP models)
• Ethernet TCP/IP(Embedded Webserver)
• Modbus RTU

Even in noisy environments with excessive amounts of mechanical vibration, the E-Scale-6610 provides a steady 1:10:000 resolution with 110 updates per second over its variety of communications protocols.
* Requires a Hardy HI 6600 Gateway Module

Read More

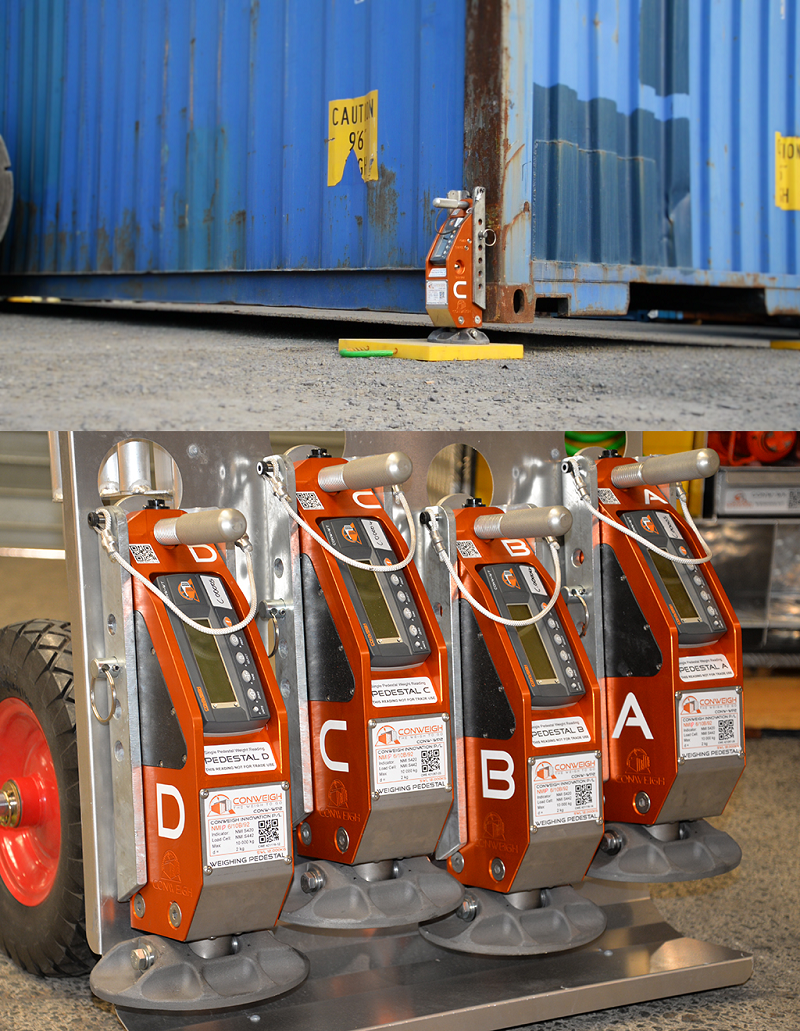

Conweigh conWEIGHr

Conweigh's weighing pedestals, the conWEIGHr, are changing the weighing game in the shipping and logistics industry.

First developed to weigh shipping containers for compliance with the IMO/SOLAS VGM law, the conWEIGHr help exporters and logistics companies safely weigh their containers and other types of cargo onsite, prior to any form of transport on the public road network. This onsite weighing also enables them to comply with the upcoming NHVR Chain of Responsibility law related to weight limits of trucks and their cargo.

A set comprises of 4 portable weighing pedestals that have a collective capacity of 40 tonnes and are built with heavy-duty load cells and components, allowing 150% service load and 300% ultimate loading—that's 60t service overload and 120t ultimate.

The pedestals communicate weight data to the Conweigh mobile app, which is part of the powerful Conweigh software that generates and stores Verified Gross Mass (VGM) certificates, among many other automation capabilities.

To date, the conWEIGHr has grown to solve many other weighing needs, such as weighing heavy machinery and irregular-sized cargo. Because it is designed to be fully customisable, it can implement various assemblies to weigh many types of heavy vehicles and equipment, all types of shipping containers, and most irregular-sized cargoes. The Conweigh Mobile Deck, for example, is an easy-to-assemble weighing platform for permanent or temporary use onsite, suitable for diverse and fast-paced weighing needs.

With every unique customer need, Conweigh continues to discover different applications for the conWEIGHr weighing equipment.

Read More
