Ishida Europe (Italy) - An entry-level Ishida CCW-SE-210 with 2 litre hoppers is counting by weight to pack 18 illy coffee capsules into a quadro bag for the Italian retail market, while two mid-range CCW-RS-210 weighers with 5 litre hoppers are dedicated to packing 3kg tins of illy coffee beans for the foodservice sector worldwide.

Efficient:

The CCW-SE-210 is able to count 18 coffee capsules into flat-bottomed quadro bags at around 50 packs per minute.

Accurate:

As well as delivering accuracy to within 3-4g of target weight, a key benefit of the new weighers has been their speed. This has enabled illy to increase the packing operation from 10 to 25 cans per minute.

Flexible:

The line is now handling around 45 tonnes of coffee beans every day.

Challenge:

Ishida multihead weighing technology is ensuring speed and accuracy for two packaging formats from one of Italy’s most famous coffee brands, illy. From the start, illy recognised that product quality also depends on the quality of the packaging. The company therefore produces its own 3kg cans which are supplied to restaurants and cafes. In addition, the company’s technical team is responsible for the design of the filling lines, with much of the equipment manufactured to illy’s bespoke specifications.

For its 3kg cans, illy had previously used a single head weighing system, but as the supplier of this machine was no longer in business and spare parts were becoming difficult to obtain, the company needed an alternative solution.

Solution:

As well as delivering accuracy to within 3-4g of target weight, a key benefit of the new weighers has been their speed. This has enabled illy to increase the packing operation from 10 to 25 cans per minute. As a result, the company is now investing in new end of line equipment in order to be able to maximise the benefits of this speed increase.

"We chose Ishida equipment because the company has a worldwide reputation for excellence. We are very pleased with the results so far, and with the support we have received from Itech and Ishida." - illy.

Established in 1933 and still a family-owned business, illy pioneered the pressurised system for its coffee beans in 1934 which today is still the process that ensures the preservation of the unique aromas and flavours of the company’s carefully selected coffee beans.

Both weighers are discharging the coffee into illy’s bespoke filling system, which incorporates a series of rotating chutes that direct the coffee beans into the moving cans. With the increases in speed from the weighers, the line is now handling around 45 tonnes of coffee beans every day.

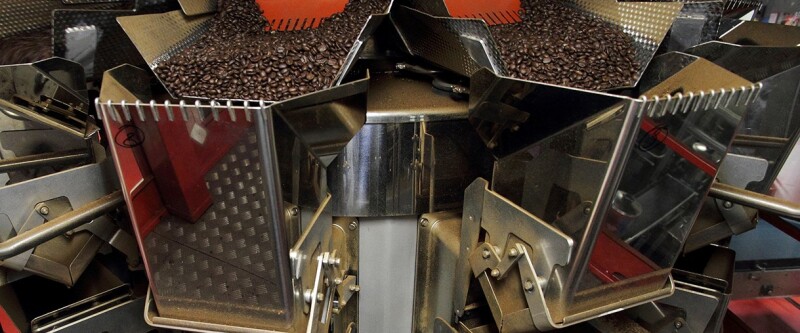

Thanks to its 5 litre hoppers the Ishida weighers can achieve the high target weight in a single product dump. After the roasting process, some coffee beans can occasionally stick together, so the pool hoppers incorporate a grid designed by illy that prevents clumps of beans falling into the weigh hopper.

Currently illy handles four different coffees for its 3kg cans – standard, decaffeinated, dark and extra dark – on the Ishida RS weighers but their flexibility and versatility means that new varieties, which the company is continually working on, can easily be introduced at any time.

The 10 head Ishida CCW-SE offers speed, accuracy and efficiency at an entry-level price and is ideal for all types of dry applications. At illy, the weigher is being used for the company’s exclusive Iperespresso capsule system that has brought authentic espresso preparation to the home.

"The settings for the different coffee varieties handled by the weigher are stored in its memory and are easily called up on the Remote Control Unit for fast and simple changeovers." - illy.

With the capsules all being of a practically identical weight, the CCWSE-210 is able to count 18 coffee capsules into flat-bottomed quadro bags at around 50 packs per minute.

Quality has always been the driving force behind all of illy’s product and packaging developments and was a key factor in the company’s selection of Ishida for these two applications.
