Laumas Elettronica's new TLB-Profinet/IO weight transmitter

Laumas Elettronica's new TLB-Profinet/IO weight transmitter
Laumas Elettronica S.r.l. (Italy) - Laumas Elettronica is pleased to introduce on the market the new TLB-Profinet/IO.

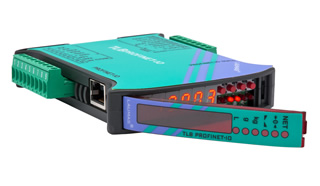

The TLB-Profinet/IO is a user friendly saving space weight indicator/transmitter especially made for Omega/DIN rail mounting and PLC connection.

Fitted with a six-digit semi alphanumeric display, a 4 buttons keyboard for the theoretical calibration of the weighing system, 2 logic inputs, 3 relay outputs, an RS485 ModBus RTU port and a slave Profinet/IO port the TLB is a perfect alternative to the Siwarex Siemens for the connection of weighing systems to PLC via Profinet.



It has been developed using the most advanced electronic components: the 24-bit 4800 Hz analogue-digital converter can sample up to 1,000,000 intervals guaranteeing a stable acquisition frequency of 1000 Hz.

It obtained the OIML R61 approval (for Automatic Gravimetric Filling Instruments) according to WELMEC Guide 8.8:2011 (MID) and CE-M approval (EN45501-2009/23/EC-OIML R76:2006).

For more information about this article from Laumas Elettronica SRL click here.
