New TLM8 Multi-channel Weight Transmitters from Laumas Elettronica

New TLM8 Multi-channel Weight Transmitters from Laumas Elettronica

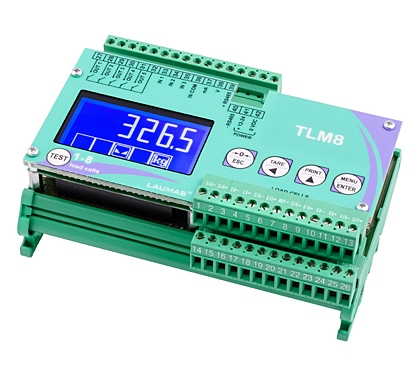

Laumas Elettronica S.r.l. (Italy) - LAUMAS introduces the new serie TLM8 series with graphic display and 8 independent reading channels.
  • Mounting: Omega/DIN rail for back panel or IP67 junction box
  • Analog output 16bit
  • RS485 serial port - Modbus RTU
  • Fieldbuses (optional): Modbus TCP, PROFIBUS DP, PROFINET IO, Ethernet/IP, Ethernet TCP/IP, EtherCAT, POWERLINK, DeviceNet, CANopen, CC-Link, SERCOS III.
Among the most innovative features:
  • RS485 (Modbus RTU)/fieldbus transmission of the divisions for the 8 independent reading channels.
  • TEST key: direct access to the diagnostic functions with graphically display of the current load distribution on each active channel with archive backups: storing, retrieving, printing.
  • Digital equalization: the instrument allows to equalize the connected load cells, response in a fast and reliable over time, avoiding use of junction boxes with trimmer.
  • Significant events archive (zeroing, calibration, equalization, alarms): storing, retrieving, printing.
  • Automatic diagnostics: the instrument is designed to store the percentage value of load distribution for each channel. The diagnostic function makes comparisons between the recorded values and if a significant variation between the values is detected during normal operation, the instrument displays an alarm alternating with the weight value. Depending on the weighing system type it’s possible to perform: Load diagnostics: load distribution control in constant barycentre systems (e.g. liquids silo); Diagnostics on zero: check on load cells drift state (eg. silo, weighbridge, platformes)
Internationally Recognized Certifications:
  • UL Recognized Component - United States and Canada
  • Customs Union Certification - Russian Federation standards
  • OIML R76:2006 (European Directive 2009/23/EC (NAWI)
