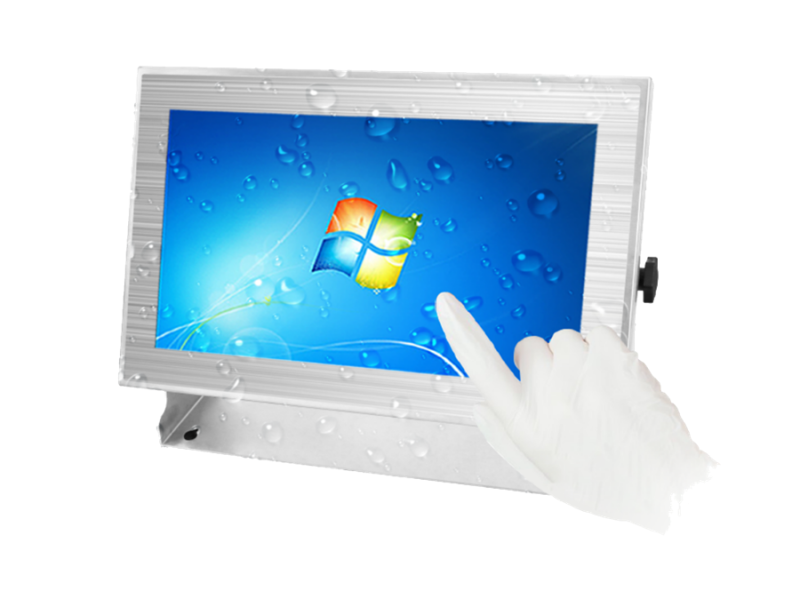

TScale Electronics Mfg (kunshan)Co.,Ltd. (Taiwan) - Press Release: T-Scale's S15-PC Industrial Intelligent Weighing Terminal, PC Based ultra-compact rugged terminal suitable for using in electronics, food, chemical, pharma and all industrial applications.

• Industrial Large Touch Screen:
  • Large 15.6” TFT LCD display with wide viewing angle.
  • Touch operating system provides ease of use and fast operation.
• Design:
  • Stainless Steel 304 housing structure, metal on/ off key and interface plug are all waterproof.
  • Adjustable mounting bracket suitable for wall-mounted or desktop.
• Hardware & performance:
  • 2.0GHz speed processer support Windows 7/ 10, and support third-party software development applications.
  • Abundant interfaces, can be connected to the Internet, USB, PC, WIFI, printer, second platform, etc., to meet all industrial application requirements.
• PC Based System Integration:
  • T-Scale provides professional integration documents and libraries, for updating system quickly.

Specification:

• Display: 15.6 inch operating display resolution:1366 x 768 px
• Capacity/ Resolution: 30000d
• Internal Resolution: 1/ 100,000
• Keyboard: 5 wire Resistive Touch Screen with 1 mechanical key
• Interfaces: 2 x USB2.0 (type A); 2 x RS-232; 1 x RJ45 for Ethernet; Wi-Fi: 2.4GHz support IEEE 802.11 a/b/g/n; Second Platform
• Operation Temperature: 0~ +40°C
• Storage Temperature: -20~ +60°C
• Operating Humidity: 5%~ 85%R.H.
• Power: Main power input AC 100-240V
• Communication: Standard 10/ 100 base T Ethernet
• Product Weight: N.W 6.7kg  G.W 8.9kg

For more information about S15-PC, please visit our website www.t-scale.com
