Team Phidippides use Zemic H3 S-type Load Cells for brake force solution

Team Phidippides use Zemic H3 S-type Load Cells for brake force solution
Zemic Europe B.V. (Netherlands) – Zemic assists Team Phidippides with a brake force measurement solution.

Team Phidippides will battle against 230 other universities from all over the World at the Shell Eco marathon 2017 in London. During this marathon the participants will drive as far as possible, on 1 liter of fuel, in highly developed cars to see who has made the most efficient and durable car.

The team has developed a roller bench to make a simulation of the track. In this way they can test the efficiency of new components and the car.

To measure the force on this bench Team Phidippides made contact with Zemic Europe. With Zemic H3 S-type load cell they managed to make a perfect solution.

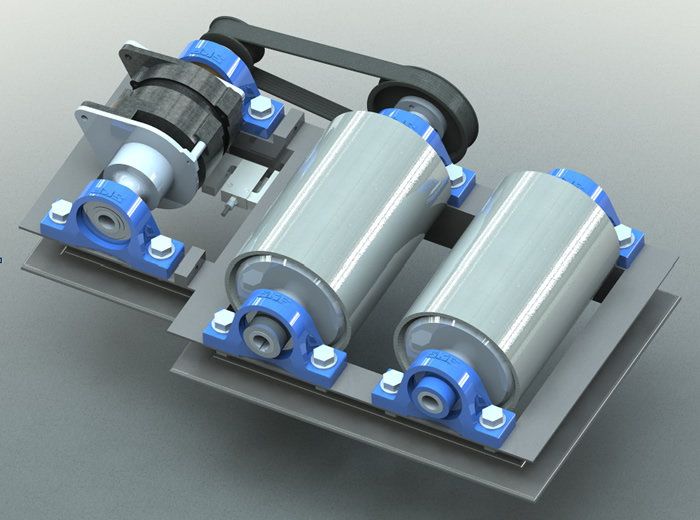

How the H3 is used in the roller bench:
The power of the vehicle will be measured by a dynamo that will hang on bearings. The S-type load cell is integrated into the construction of the rollerbench.

All the braking forces that the dynamo will provide will be absorbed into the frame through the load cell. With the use of the load cell the braking force can be determined. These braking values will be connected to the electronical management system of the vehicle. In this way the most sufficient braking power can be calculated at every speed.

Team Phidippides will use this information, to know how to drive most efficiently during the race.



More about the roller bench:
The team has developed a roller bench to make a simulation of the track. With this bench they can test the efficiency of new components and systems in the cars and see where they can improve. Zemic was approached because we have the most efficient and accurate product for this bench.

With this rollerbench solution Team Phidippides does not have to go to the track every time to test the vehicle.

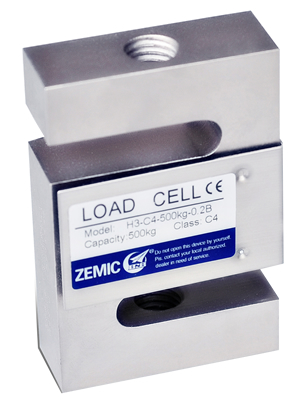

About the H3 load cell:
  • A nickel plated alloy steel tension and compression load cell
  • Suitable for hanging, hoppers and other weighing devices
  • With an IP value of 67
About Team Phidippides the Triga II and the Quadriga II:
Team Phidippides has 2 vehicles which will attend the Shell Eco Marathon. The Triga II and the Quadriga II.

The Triga II is a tricycle. This vehicle participates in the prototype Hydrogen class. In this class all vehicles drive on hydrogen that will be converted into electricity.

In the class Urbanconcepts Battery-Electric the Quardiga II will participate. In this class the car has to look as much like a normal car as possible. It needs to have wipers, lights, a handbrake and much more.

This car is also propelled by electromotors but energy is taken from a battery.



If both vehicles would drive on 1 liter of normal gasoline the Triga II would drive 1268 km and the Quadriga 903 km!

For more information about this article from Zemic Europe B.V. click here.
