Weighing Review Awards 2025
Nominated for Best Checkweighers

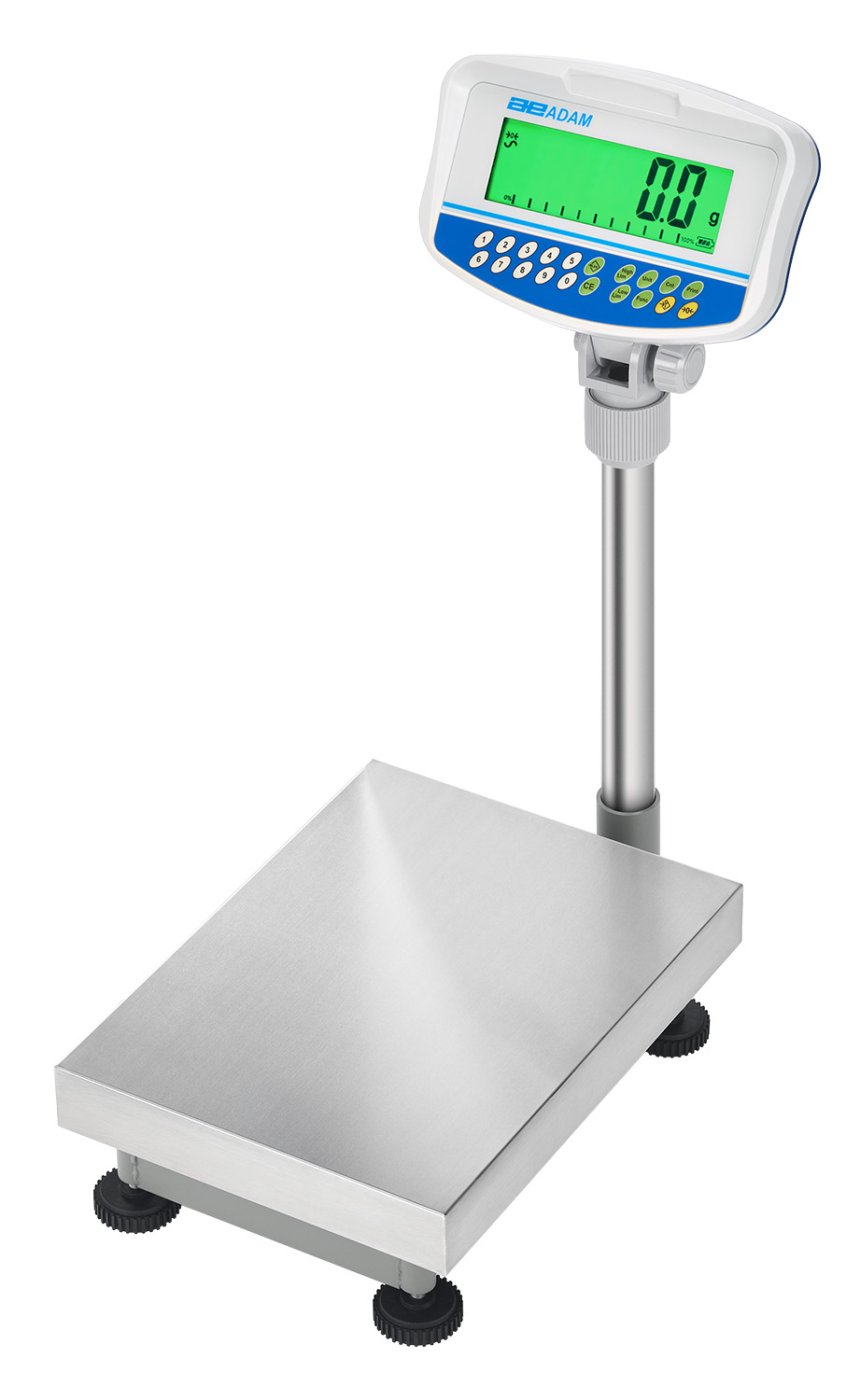

Adam Equipment GBK-Plus and GFK-Plus Bench and Floor Checkweighing Scales
The GBK-Plus and GFK-Plus bench and floor checkweighing scales are designed to stand up to the demands of rigorous industrial applications. With a backlit, easy-to-read LCD and large, 1.6"/40mm display and capacity tracker, checkweighing is speedy with GBK-Plus and GFK-Plus. Their displays change color to quickly indicate if the sample is under (yellow), over (red) or within (green) preset limits. The advanced, full-numeric keypad simplifies checkweighing limits entry, while freely selectable sample sizes (as well as an impressive 1:1,600,000 internal counting resolution) make parts counting quick, easy and accurate. The grade 304 stainless steel pan provides an ample weighing surface. A pillar is standard with both GBK-Plus and GFK-Plus, so the indicator can be mounted if required.

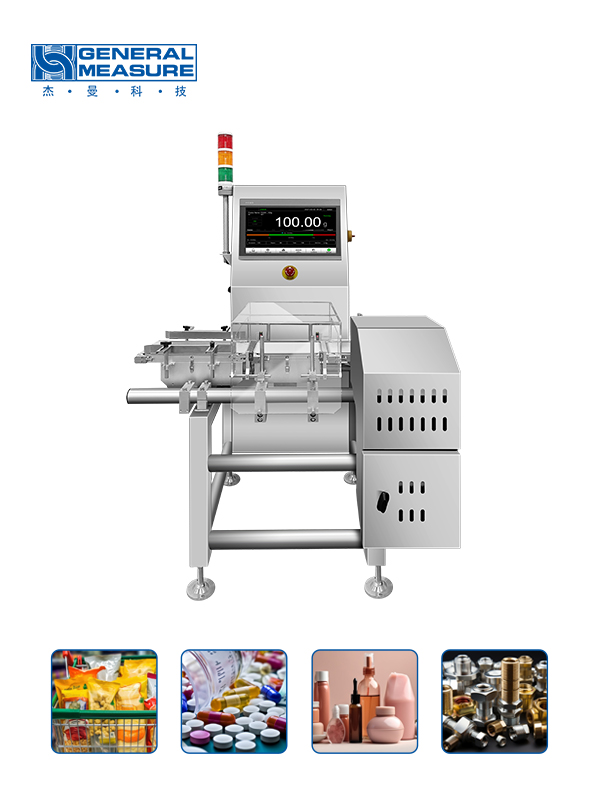

General Measure ChexGo CW-100G Pro Checkweigher
CW-100G Pro, an automatic checkweigher is made of premium stainless steel complying with the newest electrical safety regulations, which meets the demands for safety, high accuracy, and high speed. It is easy to use, and simple to maintain in the food and pharmaceutical industry.
High Performance
- The weighing range is 1~500g
- The highest accuracy is ±0.1g
- The highest speed is 300pcs/min
User Friendly
- High visibility 15inch TFT screen with graphic user interface
- Automatic weighing compensation and zero tracking
- Automatic measuring time adjustment
Developed Functionality
- 1,000,000pcs weight value for production statistics
- Data storage and data printout ready
- Statistics programs for evaluation
Safety Design
Continuously variable belt speed control
Dibal CW-5000 Automatic Checkweighers
The Dibal CW-5000 automatic checkweigher stands out for the following key advantages:
-
High-speed weighing: Capable of handling up to 180 products per minute (ppm), significantly improving efficiency in high-performance production lines.
-
Compact and modular design: Its versatile structure allows for easy integration into various production setups, adapting to limited spaces and enabling future expansions or modifications.
-
Wide weighing range with high precision: Supports products from 1.5 kg with an accuracy of 0.5 g, to 15 kg with an accuracy of 5 g, ensuring strict quality control and compliance with industry regulations.
-
Intuitive user interface: Equipped with a 10.1-inch touchscreen, providing a user-friendly and efficient experience for operators, making setup and real-time monitoring easier.
These features make the CW-5000 an outstanding solution for industrial weighing control, ensuring accuracy, efficiency, and adaptability.

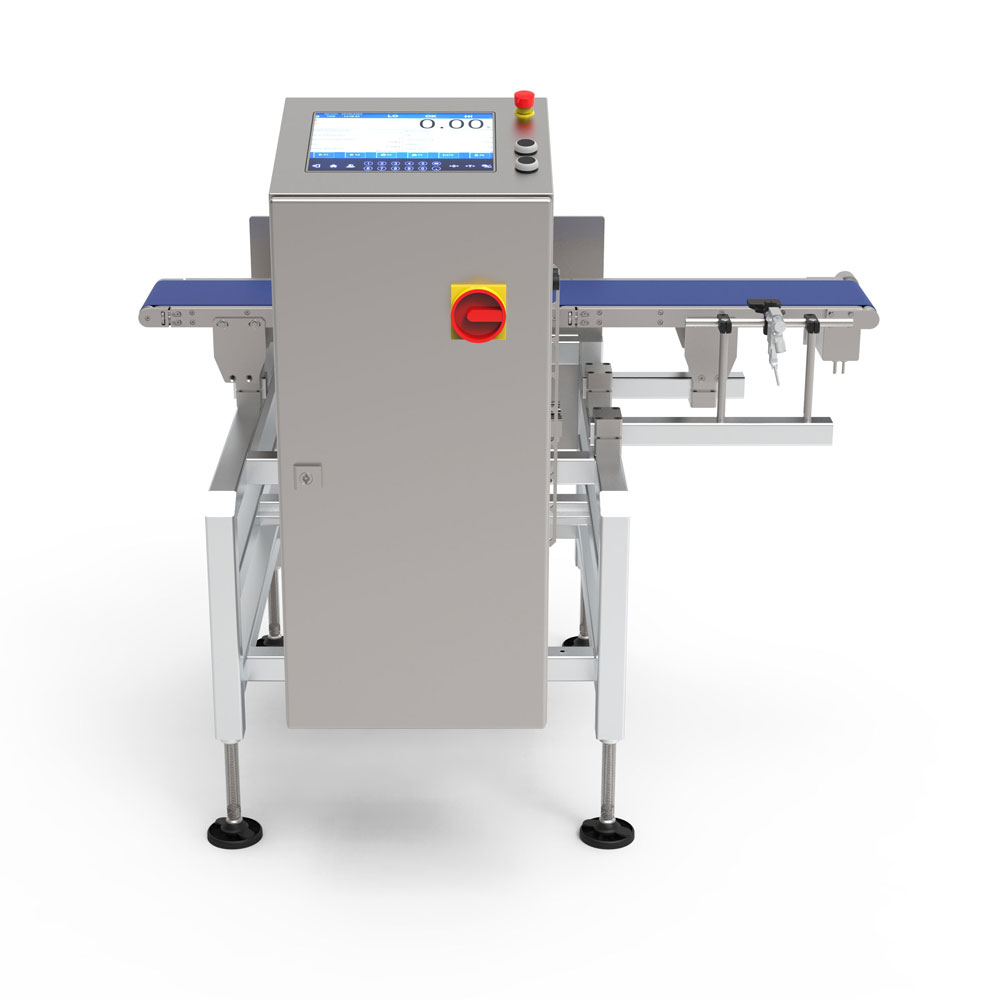

RADWAG DWM HY10 Basic Checkweigher
The DWM HY10 Basic Checkweigher with maximum capacity [Max]: 1500 – 6000 g and readability [d]: 0.5 – 2 g is a compact device that guarantees 100% inspection of a production batch. It is easy to install and integrate into the production line. A number of ready-made components simplify the scale’s adaptation to the requirements of a specific production line.
Precise Measurement and Easy Operation
The device provides a capacity of up to 150 pcs/min. It guarantees precise measurement, records data to a database, rejects defective products with an integrated rejecter, and prepares a specialized inspection report. Thanks to the 10.1-inch display and user-friendly interface, operation of the scale is easy and comfortable.
Speed, Accuracy and Resistance
The DWM HY10 Basic Checkweigher is equipped with a reliable MWMH series measuring unit – a magnetoelectric system. MWMH guarantees high speed, readability and resistance to mechanical shock. Maintenance-free BLDC type motors were used to drive the scale. The structure and control cabinet are made of stainless steel. The correctness of data recording and storage is supervised by the SQL database system. The large, capacious database makes it possible to register any number of operators and assortments.
What Speaks to the Choice of DWM HY10 Basic Checkweigher? Main features:
- 10.1-inch color display
- Touch panel
- Magnetoelectric measuring module
- Brushless motors
- Pneumatic discrimination system
- SQL database
- No limitation of assortment and operator base
- Current statistics
- Possibility of integration with the line and the customer’s control system.
Magnetoelectric Measuring Module: Speed and Readability
The MWMH module enables reading of real results with unprecedented readability and stunning repeatability. The measurement speed achieved by the MWMH module makes it possible to use it in automated production lines. For fast and dynamic measurement processes, the weighing module’s transducer can operate at a sampling rate of 3200 pom/s.
Brushless Motors: Longer Life and Quieter Operation
The maintenance-free BLDC-type motors we used in the scales have a longer life, higher efficiency and lower failure rate than their brushed counterparts. They are lighter and quieter and allow continuous operation at maximum torque. They have large power ranges and accurate speed control.
Pneumatic Discriminator System: Reliability, Precision and Simplicity
We have equipped the scale with a pneumatic discriminator that rejects defective products. The principle of the pneumatic discriminator system relies on compressed air being released when a defective product is detected. The main advantages of pneumatic systems are considered to be reliability, precision of operation and simplicity.
Possibility of Integration with the Line and the Customer’s Control System: We Are Giving You Exactly What You Are Looking for
We have produced a versatile scale that you will use in the optimal way for you and for your individual purposes.
The DWM HY10 Basic Checkweigher is equipped with a range of ready-made components that make it easy to integrate into any production line. Whatever your needs, you will effortlessly adapt our device to the requirements of your production facility.
