Nominated for Best Load Cells


Utilcell Model 350 Shear Beam Load Cell
Utilcell

Utilcell Model 350 Shear Beam Load Cell

The load cell Model 350 (300…10.000 kg), together its mounting kits, have been designed for robust and accurate weighing in industrial processes of tanks and hoppers, with multiple advantages:

  • Model 350i version: Fully stainless steel construction. Hermetically sealed with the highest protection degree IP 68 and IP 69K.
  • Model 350a/n version: Stainless steel or nickelplated alloy steel construction. Silicone sealed with IP 66 protection degree.
  • Globally used in legal weighing systems. OIML R60 Class C 3.000 divisions and NTEP Class III & IIIL 5.000 and 10.000 multiple cell.
  • Highly recommended load cell for any type of tanks and hoppers in industrial weighing applications.
  • High repeatability and high accuracy of the weighing values.
  • Accessories available in several versions:
    • Improved force transmission to the load cell due to a ball-based joint, giving the best accommodation in cases of thermal expansions, structural torsions and deflections.
    • Rubber silent-block for higher impact and vibration protection.
    • Load foot for industrial 4-load cell platform scales.
  • Superior safety systems for the utmost reliability:
    • Easy installation in the tank and hopper supports, with or without the load cell.
    • Blockage bolts for transport protection of the load cells.
    • Upper plate with conical holes for self-centering.
    • Integrated lift-off prevention system.

Read More

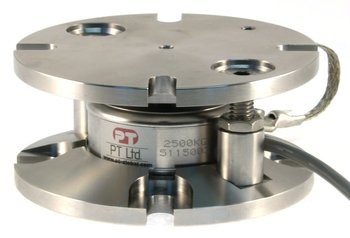

PT Limited Accupoint Weigh Module
PT Limited

PT Limited Accupoint Weigh Module

The Accupoint Weigh Module® epitomizes quality in weighing measurement devices. It is a perfect solution for vessel weighing in food processing plants, dairies, chemical, bottling plants etc, where the Accupoint® Weigh Modules can be used on tanks, silos and many other weighing vessels.

The Accupoint Weigh Module® incorporates an unparalleled level of protection for load cells and maintains performance specifications, improves safety whilst reducing load cell damage and plant downtime. Each is a self-contained weigh point with both uplift and side restraint built-in, the installation only requires bolting the Accupoint into place. Completely manufactured in stainless steel with special long life hardened contact points, the units will give years of high precision weighing with reduced maintenance.

Accupoint Weigh Modules® are available in nine capacities from 100kg to 50,000kg, giving typical weighing options of up to 200 tonnes in a standard four support vessel. The Accupoint Weigh Module® incorporates a high precision stainless steel IP68 protected mini disk load cell and is backed by our three-year warranty.

Read More


Minebea Intec Load Cell Pendeo® Truck
Minebea Intec

Minebea Intec Load Cell Pendeo® Truck

The Pendeo Truck is a digital load cell with DAT (Digital Assistance Technology). Its advanced functions include short weighing times and significant time savings during configuration. The Pendeo Truck stands for easy commissioning, efficient use as well as quick repair and maintenance. The load cell offers a particularly high overload range. A hermetically sealed enclosure allows the unit to be used even under extreme operating conditions.

Read More

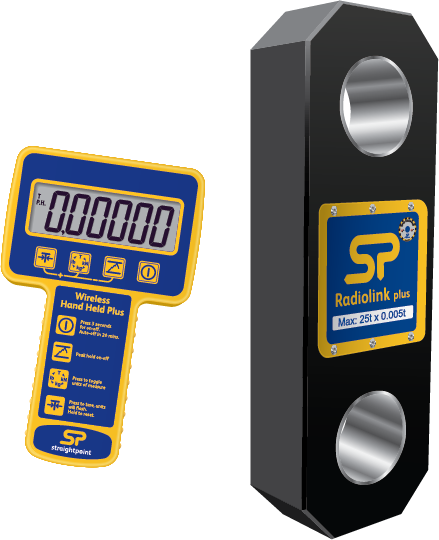

Straightpoint RadioLink Plus
Crosby Straightpoint

Straightpoint RadioLink Plus

International certifications and compliances:

  • DNV-GL: DNVGL-ST-0378 - Standard for offshore and platform lifting appliances *NEW*
  • ASME: B30.26 - Rigging Hardware - Safety Standard For Cableways, Cranes, Derricks, Hoists, Hooks, Jacks, And Slings
  • ATEX Zones 0, 1, and 2: Safe to use in explosive gas environments

Being awarded the compliances above shows that we produce products to the highest of standards needed to perform impeccably within the world's most demanding industries. They are the produce of many years of technical experience, research & development, and a passion to produce the best. We are now in a exceedingly exclusive club of Load cell manufacturers that provide products with these standards being met.

A wireless tension load cell capable of both weighing and dynamic load monitoring, the latest Radiolink plus is constructed of high quality aircraft grade aluminium and features an advanced internal design structure. This internal design structure not only provides the product with an unrivalled strength to weight ratio but it also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67/NEMA6 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments.

Featuring industry leading wireless technology and range of 700m/2300ft, the versatile Radiolink plus is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz.

Decades of development into this product include many stand out features such as our unique strain gauging method that helps compensate for wire rope torque when the Radiolink is loaded. Designed for measurement of both static and dynamic loads the Radiolink plus tension load cell can also be used in combination with Straightpoint’s range of SW-MWLC high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 100 Straightpoint wireless load cells.

Benefits:

  • Unmatched Battery Life
  • Error Free Data Transmission
  • Unrivalled Resolution

Comes with standard 2 years warranty

Read More

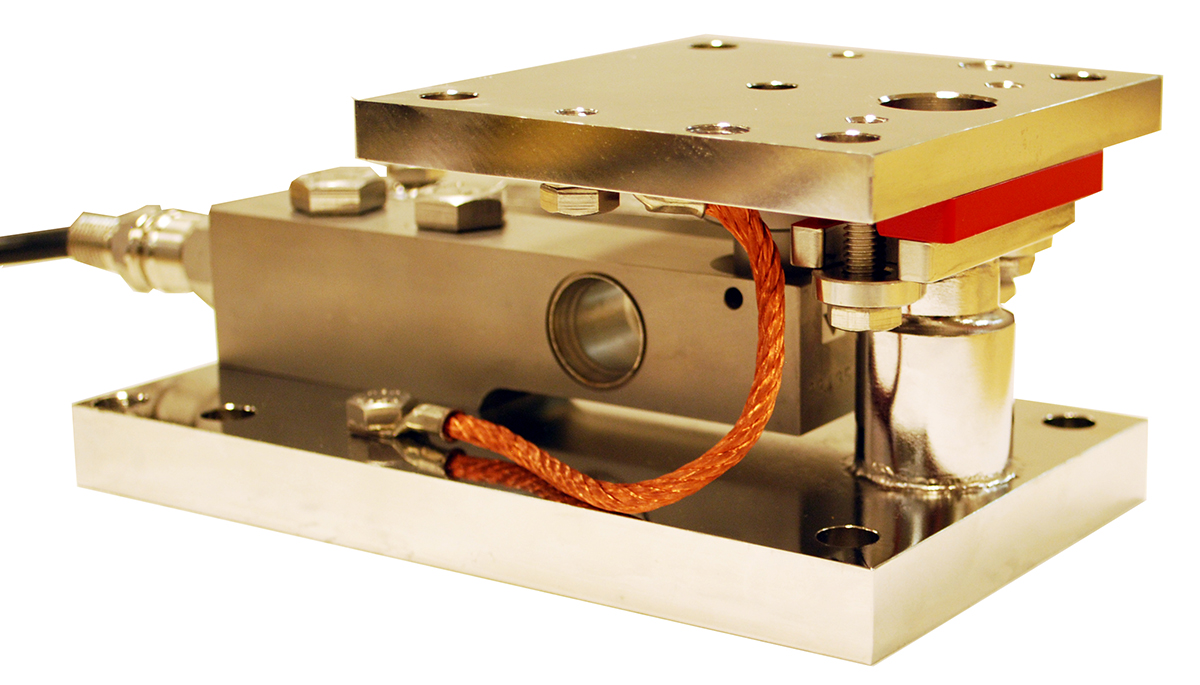

Hardy OneMount™
Hardy Process Solutions

Hardy OneMount™

The Hardy OneMount™with Advantage® shear beams are specifically built to save customers time and money during installation, calibration, and maintenance. Each load point provides extraordinary flexibility and durability in most industrial environments.  Each feature of the load point was intentionally designed based on nearly 100 years of process weighing experience, delivering a best-in-class measurement system for vessel, hopper and tank weighing.

See the OneMount video.  https://youtu.be/EhFYjichNqE

Accuracy:

  • Self-centering rocker design maintains alignment under considerable shear forces
  • Precision sensor (combined error 0.02% rated output) from 1,125 lbs – 22,500 lbs
  • Optional Dynamic Stabilization Rods can be purchased to reduce vibration noise on the sensor for better resolution

Safety:

  • Liftoff and side force ratings are confirmed by third party destructive testing
  • True glass-to-metal hermetically sealed sensors deliver the ultimate washdown protection (IP68/IP69K)
  • C2® electronic calibration reduces the risk of accidents or contamination from test weights

Easy Installation:

  • Integral spacers can carry the full rated capacity without the load cell installed, eliminating the need for expensive dummy load cells or welding fixtures
  • Once mounts are installed, the load cells slide into place.  With minimal tank jacking (1/8”), the spacers are removed for a live load point
  • 360° checking mechanism means load points can be installed in any direction
  • C2® electronic calibration for fast startup in high capacity installations

Easy Maintenance:

  • Replace load cells with minimal tank jacking (1/8”)
  • Matched mV/V/ohm load cells are easy to replace without recalibration

User Benefits:

  • OEE improvement from consistent, accurate performance, and reduced installation and maintenance time
  • Reduced capital investment and labor typically associated with dummy load cells and welding fixtures
  • Reduced complexity of system selection and installation from a single, universal design

See Our YouTube Video on the Safe, EASY and Accurate OneMount: http://youtu.be/UXQhjcmBxrU

Easy Installation Process:

  1. Align and level the mounts under the vessel without the load cells installed.  The mounts can be installed in any orientation, because of a 360º checking mechanism to ensure accuracy and safety.
  2. Lower the vessel onto the mounts and weld or bolt the mounts to the foundation and the vessel.
  3. Perform any peripheral pipe welding or add any required attachments.
  4. Slide the load cell into place and fasten to the bottom plate.
  5. Jack the vessel up 1/8” to remove the shipping/installation bracket.
  6. Lower the vessel onto the live load point and calibrate using Hardy’s C2® electronic calibration.

Read More

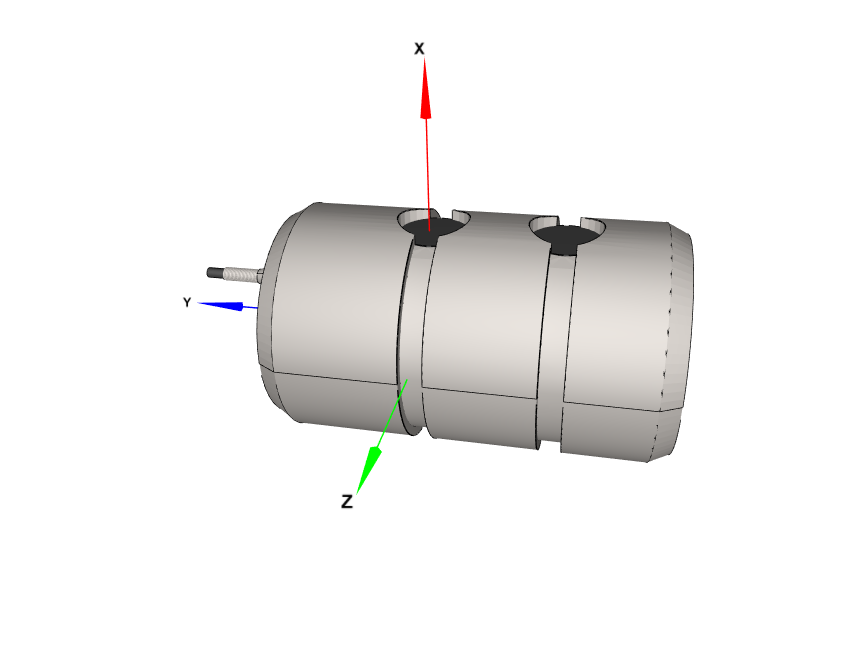

Zemic Europe customized loadpins
Zemic Europe B.V.

Zemic Europe customized loadpins

Together with our customer Zemic designs the best-fit load pin for the application based on the customer's needs.
Our Zemic Europe sales engineers can discuss the requirements of your application and prepare a tailor-made solution. We have the production facility to accomodate small batches of sample pieces or to mass produce load pins.

Often Zemic Europe experiences customer specific requirements to a loadpin, concerning load pin dimensions, IP grades, integrated transmitters, specific cable exits, redundant solutions etc.

Zemic loadpins are force sensors which are being installed in applications for measuring dynamic, static or hoisting forces. In the market of force sensors, loadpins are also known as force measuring bolts, force measuring studs, axis cells or force sensing bolts.

Read More


HBM Z6R Bending Beam Load Cell
HBK - Hottinger Brüel & Kjaer

HBM Z6R Bending Beam Load Cell

Z6R Bending Beam Load Cell – Robust, Easy to Clean, Compatible with Z6.

The legal-for-trade Z6R bending beam load cell has been designed for maximum capacities ranging from 20 to 200 kg and is mechanically and electrically compatible with the proven Z6 load cell developed by HBM that has set standards worldwide. The Z6R eclipses the market standard and guarantees peak performance in applications with high requirements for hygiene or in harsh environments.

The stainless-steel enclosure is very robust and withstands extreme mechanical stress and aggressive media. The protected, dirt-repellent design without gaps or edges allows its use in food processing, production of pharmaceuticals or packaging of building materials, because the load cell is easy to clean and liquids roll right off.

Z6R reduces downtime and guarantees precise weighing in harsh environments, regardless of whether it is used in packaging machinery or batching scales. A real benefit for scale manufacturers and system operators!

Get the Z6R on your team to assure the continuity of your production!

Read More

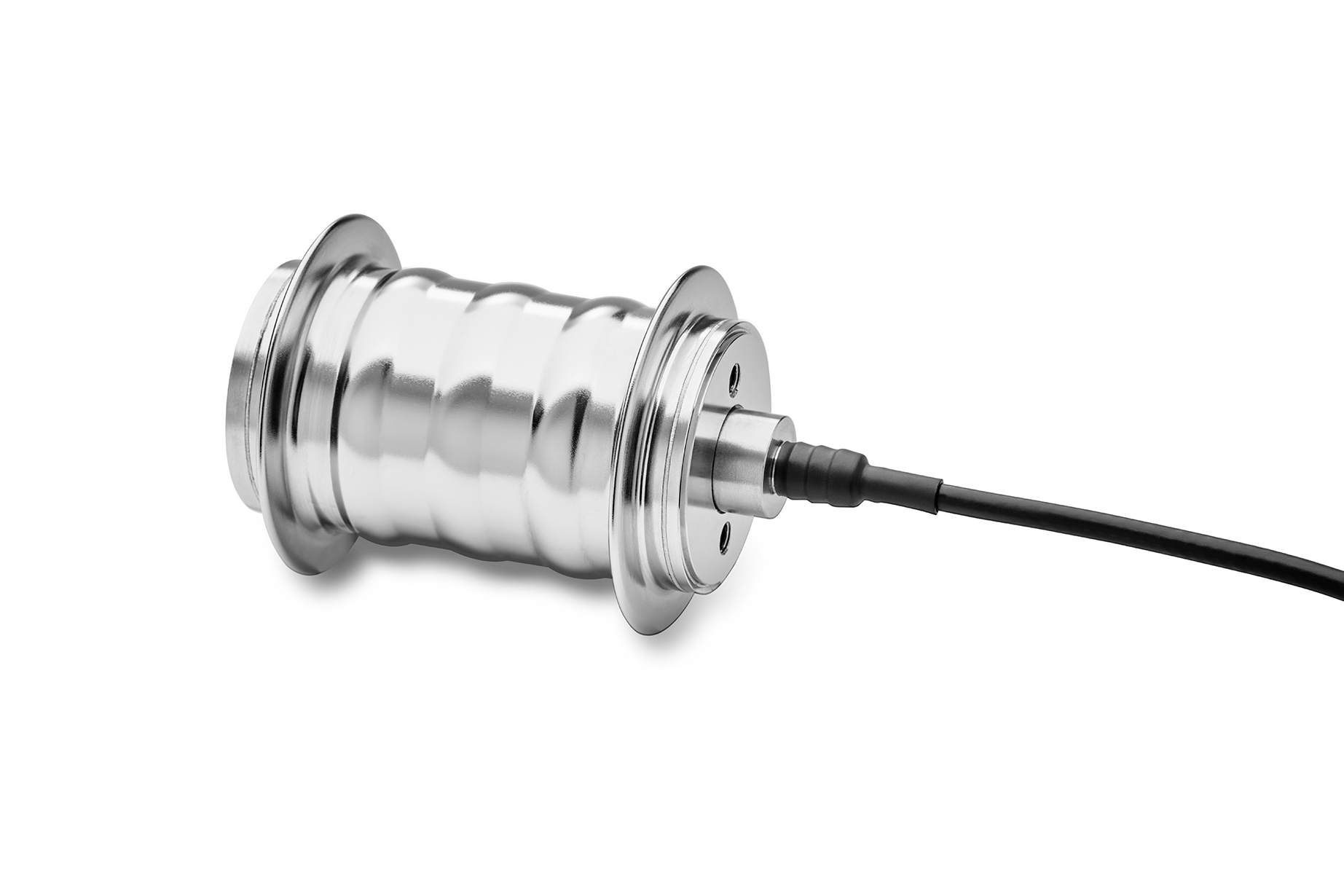

Eilersen Hygienic Single Point Load Cell, type: HBL
Eilersen Electric Digital Systems A/S

Eilersen Hygienic Single Point Load Cell, type: HBL

Eilersen Electric A/S launches a new world-first compact hygienic single point load cell in 2018.

It is the only hygienic single point load cell on the market that offers a 100% digital solution as well as the advantage of very high overload tolerance.  The new load cell can be used for dynamic weighing, multihead scales, combination weighers, small tanks and vessels.

The patented hygienic design of the HBL load cell is unique and ensures an easy to clean installation and a very high resonance frequency (spring rate) for rapid dynamic weighing. The load cell is produced in stainless steel and is available in capacities up to 100kg and tolerates overload up to 1000%.

Other key advantages for the new digital hygienic single point load cell are:

  • Patented high reliability capacitive sensor
  • Hermetically sealed to IP68 (laser welded)
  • High accuracy (0,015%)
  • Small deflection at rated capacity
  • Digital filters
  • Cable length up to 100 meters
  • Calibration independent of cable length
  • Replaceable load cell cable
  • Easy mechanical and electrical installation
  • Withstands welding voltages and ESD

Read More


Scotload Smartload® Load Link
Scotload Ltd.

Scotload Smartload® Load Link

Designed for both weighing and dynamic load monitoring, our range of award winning SmartLoad Load links offer real-time load monitoring, using high tensile, aerospace grade anodised aluminium to offer ruggedized 4 IP67 protection as standard.

Our SmartLoad® load links  come with numerous display options, boast a range of up to 350m (can be extended with options) and can display up to 4 loads simultaneously (whilst also identifying the SUM and AVG. loads) making the SmartLoad® load link the ‘go-to choice’ for industrial weighing applications.

All of our SmartLoad® load links are now also available in zone 1 and zone 2 hazardous area variants making the SmartLoad Load Link the only industrial tension link certified to IECEx (international), ATEX (European) and U.S. and Canadian standards, providing total assurance to its customers. The certification also includes standard Duracell batteries, meaning users are able to change batteries of their SmartLoad zone 1/2 load link directly within hazardous environments, significantly increasing usability and driving operational efficiency. Scotload is the first company to ever provide this functionality for customers operating in hazardous environments.

SmartLoad® load link features and benefits:

  • Displays up to 4 loads including summarised and average loads on one screen
  • Integrates with wireless base station PC
  • Output via 4-20m/a and RS232 using the SmartLoad® wall-mounted display
  • Zone 1 and zone 2 hazardous area certified variants available; ATEX, IECEx, U.S. and Canadian
  • Internal antenna for added protection
  • Logging function controlled from handset (no need for on-site laptop)
  • No training or complex pairing required - simple 'plug-and-play' system
  • Avoids downtime and unnecessary wastage - built in system redundancy

Read More
