Weighing Review Awards 2024
Nominated for Best Load Cells
UTILCELL MODEL 350 Shear Beam Load Cell
UTILCELL (Spain) – The load cell Model 350 (300…10.000 kg), together its mounting kits, have been designed for robust and accurate weighing in industrial processes of tanks and hoppers, with multiple advantages:
- Model 350i version: Fully stainless-steel construction. Hermetically sealed with the highest protection degree IP 68 and IP 69K.
- Model 350a/n version: Stainless steel or nickel-plated alloy steel construction. Silicone sealed with IP 66 protection degree.
- Globally used in legal weighing systems. OIML R60 Class C 3.000 divisions and NTEP Class III & IIIL 5.000 and 10.000 multiple cell.
- Highly recommended load cell for any type of tanks and hoppers in industrial weighing applications.
- High repeatability and high accuracy of the weighing values.
- Accessories available in several versions:
- Improved force transmission to the load cell due to a ball-based joint, giving the best accommodation in cases of thermal expansion, structural torsion, and deflection.
- Rubber silent-block for higher impact and vibration protection.
- Load foot for industrial 4-load cell platform scales.
- Superior safety systems for the utmost reliability:
- Easy installation in the tank and hopper supports, with or without the load cell.
- Blockage bolts for transport protection of the load cells.
- Upper plate with conical holes for self-centering.
- Integrated lift-off prevention system.
Thayer Scale LC-137 (LVDT) Load Cell
The LC-137 (LVDT) Load Cell: A precise and durable “tension-style” force transducer in force ranges from 5 to 465 pounds. The LC-137 is the ideal load cell for light-loading applications (where mechanical tare loads may represent 10 to 40 times the net material load), with performance at 200 percent of rated output. Our LC-137 load cell is guaranteed for fifteen years—a guarantee that is the longest in the industry.

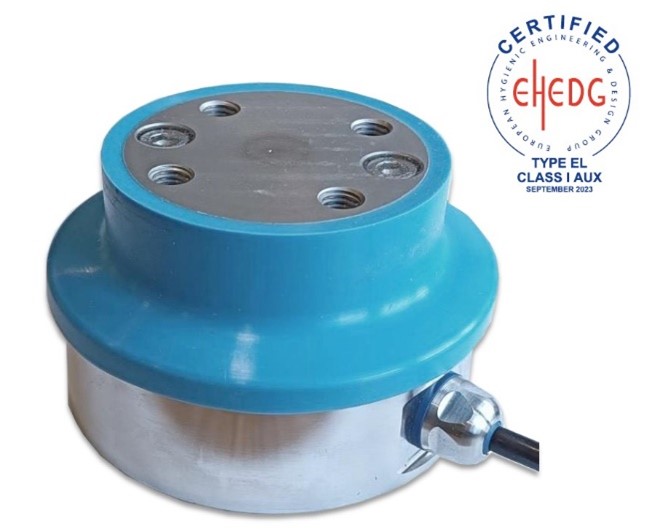

Zemic BM24L10 EHEDG Stainless steel hygienic compression load cell
As a global leader for strain gauge and force measurement, Zemic saw a growing need for hygienic load cells. Especially from our customers in the food and medical industry. That is why our Zemic R&D team developed a new load cell, the BM24L10, in collaboration with EHEDG.
This load cell ensures food and pharma safety, in the whole production process, including weighing, filling and packaging.
Characteristics of an EHEDG load cell
Hygienic load cells must meet the following requirements. Our BM24L10 load cell meets these requirements.
Hygienic Design: Load cells designed to meet EHEDG standards are constructed with smooth surfaces and rounded corners, minimizing areas where contaminants could accumulate. This hygienic design ensures that the load cells can be easily cleaned and sanitized, meeting the stringent cleanliness requirements of EHEDG.
Material Selection: Load cells used in EHEDG environments are often made from materials that are resistant to corrosion and can withstand regular cleaning with harsh chemicals or high-pressure washdowns. Our load cell is made of stainless steel.
Sealed Construction: Load cells for EHEDG environments typically have a sealed and ingress-protected design. This prevents moisture, dust, or cleaning agents from entering the internal components of the load cell, ensuring accurate and reliable performance over time. The ingress protection rate of our load cell is IP68.
Reliability and Accuracy: Load cells are essential for precise weighing and force measurement applications. Even in hygienic environments, where cleanliness is a priority, the load cells must provide accurate and reliable data to ensure product quality and process efficiency.
In summary, using load cells designed for EHEDG environments is crucial to maintaining hygienic conditions, complying with industry regulations, and ensuring accurate and reliable measurement in industries where cleanliness is paramount.
ZEMIC EHEDG load cell BM24L10 features
• Stainless steel IP68, ensure robust performance
• Unique hygienic design
• High accuracy up to 0.05%
• Capacity 5t-20t, for heavy-duty weighing applications

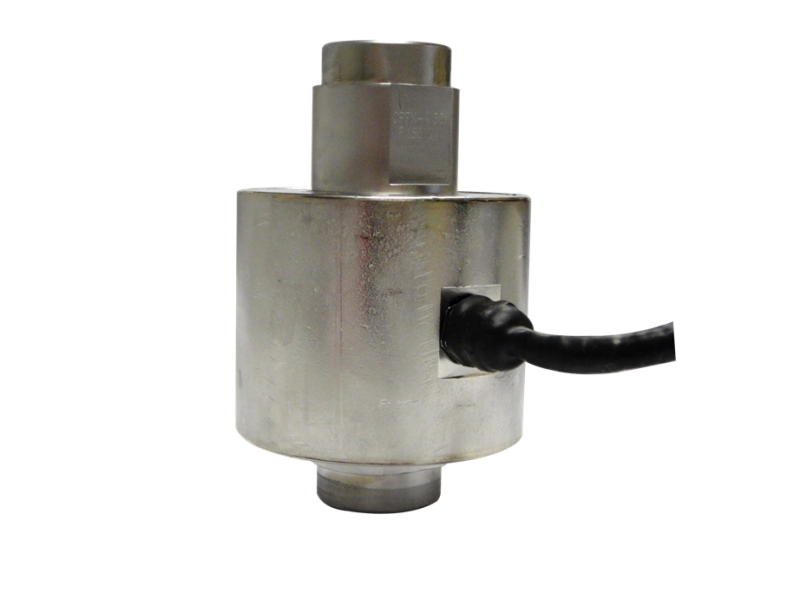

ARPEGE MASTER K CPFN-A load cell, its groundbreaking innovation
From the outset, ARPEGE MASTER K - French manufacturer of weighing systems for almost 40 years - has ensured in-house expertise and know-how in the design and manufacture of its products.
As a result of this culture of technological innovation, ARPEGE MASTER K has been developing the digital offer since the 2000s and was a pioneer in the integration of CAN Bus technology into weighing instruments. ARPEGE MASTER K is now unveiling its latest innovation for industrial weighing.
To guarantee reliable and conclusive weighing in all circumstances, despite the global rise in temperature, it has become essential to extend the temperature range approved for legal-for-trade use beyond the currently accepted limit of 40°C (104 F°).
Acting on this idea, the third generation of the CPFN-A digital load cell developed by ARPEGE MASTER K is approved for use up to +55°C (131°F), while retaining its outstanding metrological characteristics in terms of reliability and accuracy (up to 6000 scale divisions, C6 class).
With IP69K protection (according to EN60529/DIN40050 standards), connected via a shielded cable with stainless steel braided sheath (15m length), the CPFN-A load cell is suitable for use in the most demanding and harsh conditions.
Its exclusive 'MasterCAN' digital technology simplifies network interconnection and ensures reliable transmission of weighing data to the weighing indicator and associated peripherals. Its connectivity makes it an essential part of ARPEGE MASTER K's patented technology for remote supervision and predictive maintenance of weighing equipment.
Available in 30 and 60 tonne versions, this digital load cell can be combined with the entire ARPEGE MASTER K range of IDe, IDl and IDTB weight indicators or transmittors, as well as the IDLC2, also approved up to +55°C (131°F).

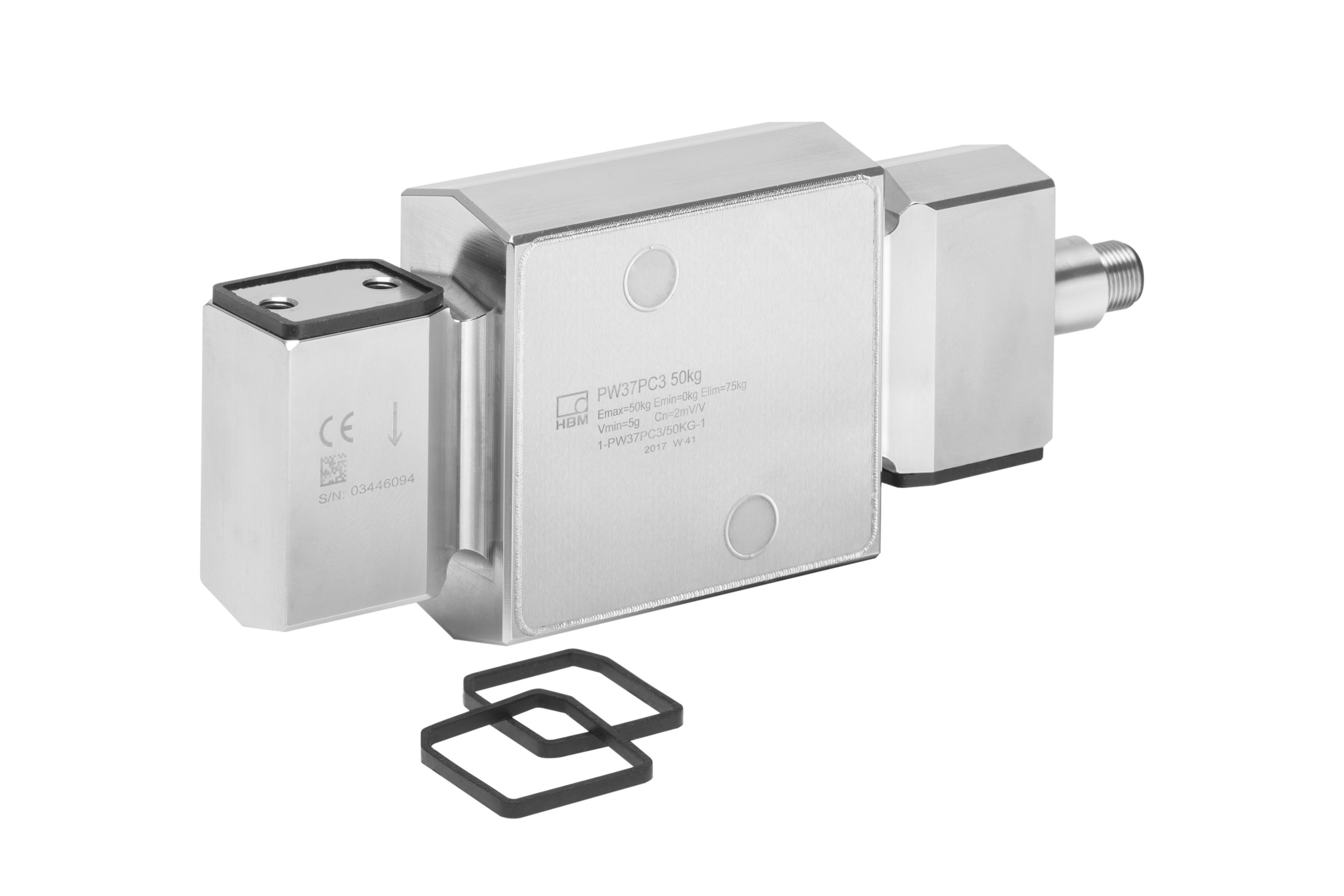

HBK PW37P: Hygienic Weighing up to 200 kg
Maximum Hygiene in Weighing
The HBK PW37P platform load cell is meticulously crafted for durability and precision, EHEDG certified to ensure the utmost hygiene standards. Perfect for food filling, packaging, and weighing tasks.
PW37P: Hygienic Weighing up to 200 kg
The PW37P precision single-point load cell is tailored to the specific requirements of the food industry. Its EHEDG certification guarantees the highest hygiene standards. Thanks to its exceptionally smooth surface, liquids effortlessly roll off, while dirt can be easily removed. With industry-standard mounting dimensions, integration into any system is seamless. Moreover, the PW37P boasts an exceptionally long service life, attributed to its high torsional stiffness and resilient materials capable of withstanding moisture and aggressive chemicals.
- Accuracy class: C3 multi-range (OIML certified), Y up to 25000 for the PW37PY version
- Maximum capacity: 0–50kg, 0–100kg, and 0–200 kg
- Degree of protection: IP68/IP69K
Highly versatile
Incredibly versatile with standard mounting dimensions, this load cell is available in maximum capacity ranges of 0–50 kg, 0–100 kg, and 0–200 kg. It comes equipped with an M12 connector plug, facilitating effortless integration into a diverse array of food industry applications.
Hygienic
Constructed entirely from stainless steel, this hygiene-conscious solution is tailor-made for the demands of the food industry. Its seamless design, devoid of any gaps or edges, ensures dirt resistance and facilitates hassle-free cleaning. With hermetic sealing and "Clean in Place" (CiP) capability, maintaining optimal cleanliness is effortless. Liquid substances effortlessly slide off its surface, leaving behind no residue, ensuring impeccable sanitation standards are consistently met.
Robust
Renowned for its durability, this robust solution boasts exceptional chemical resistance thanks to its sturdy materials. Designed to work in humid and aggressive settings, it carries an IP68/IP69K rating, ensuring reliable performance even in demanding environments. With high torsional stiffness, it maintains resilience under pressure, guaranteeing longevity and ruggedness, making it a steadfast choice for harsh operating conditions.
Connection to the Digital World
Facilitating connectivity to the digital realm, the PW37P seamlessly integrates with DSE weighing electronics or PAD digital transducer electronics, enabling swift visualization, configuration, and communication of measured values to a connected PLC. Encased within a compact, rounded stainless-steel enclosure, the electronics remain safeguarded from liquids and harsh environmental elements. Particularly suited for applications with rigorous hygiene standards, the DSE-HIE variant comes highly recommended.
