Weighing Review Awards 2020
Nominated for Best Onboard Weighing Systems
UTILCELL Customized Load PIN
The UTILCELL’s load PIN is specially designed for replacing and upgrading existing axles and provide reliable measurements of loads applied on the same axis.
The load PIN brings many benefits as:
- ATEX version available Zone 0-1-2 and 20-21-22.
- Weighing control, limitation and monitoring of overloads.
- Preventive maintenance actions for safety and reducing costs.
- 100% compatible with your existing axles.
- Easy to replace and install with no systems modifications.
- Immediate quotation and fast delivery terms including customized detailed drawings and fulltechnical specifications.
- Robust construction in high strength stainless steel.
- Standard: IP 66 protection. Optionally: IP 68 and ATEX.
- Working temperature up to +180 ºC.

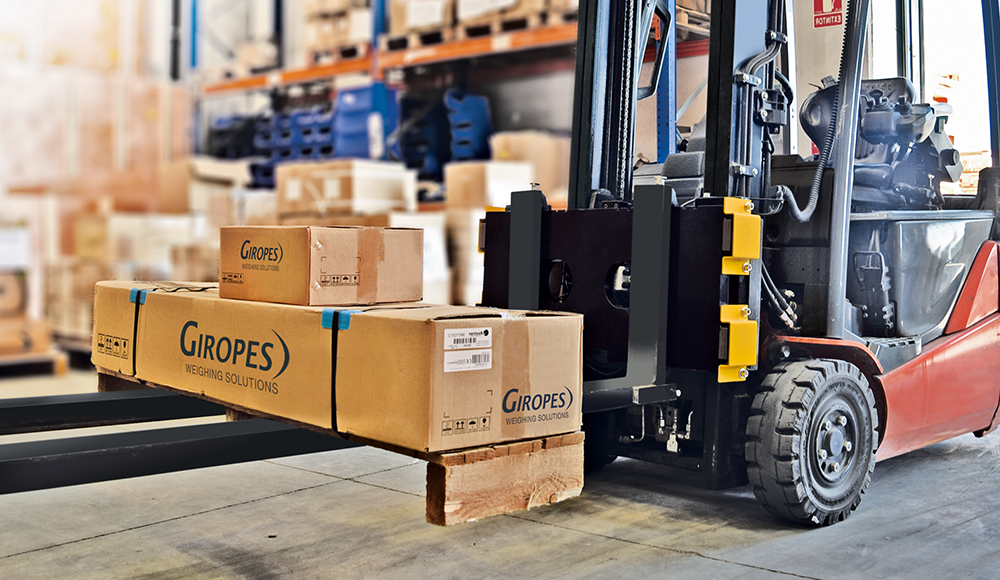

Giropès SL GI-HPP Weighing System for Forklifts
New weighing system for forklifts
The GI-HPP weighing system consists of a painted steel HPP forklift scale with IP68 protection load cells, a GI400 series tare weight indicator with ABS housing and IP54 protection, the bracket for correctly positioning the indicator on the forklift truck and a cable up of to 8 meters long (4 meters of spiral cable).
Strainstall Container Weight System (CWS)™
Container Weight System (CWS)™
Strainstall's Container Weighing System (CWS)™ provides a verified gross mass (VGM) for container weights, as well as identifying eccentric loading conditions to support terminal operators with IMO SOLAS compliance.
CWS™ is a highly accurate load measurement solution for container weighing, integrating load monitoring technology onto container handling equipment - with no delay to port operations - to provide a quick and easily retrofitted solution that delivers accurate weight verification data in real-time.
The Container Weighing System™ can be installed and tested within a matter of hours and is fully configurable enabling operators to select the most appropriate option for their container handling needs. Container weighing system options are flexible including load pins or diaphragm load cells. It can be installed in the spreader, head block, sheaves or booms using our patented technology for use with reach stackers, rubber tyre gantry's (RTG), straddle carriers and gantry cranes.
Successful installations for Strainstall's latest generation Container Weighing System (CWS)™ have been undertaken at some of Europe's largest container terminals, categorically proving that CWS™ exceeds even the most stringent industry accuracy expectations. CWS has been proven to deliver highly accurate verified gross mass (VGM) for containers, meeting, and in many cases exceeded expectations for IMO state competent authority requirements for SOLAS.
Features:
- Weighs containers in motion as part of the ports regular lifting cycle
- Retrofit solutions for all existing spreader based container handling systems
- Fast installation
- Non-consumable load pin or load cell system solutions
- Simple to install - no special tools or skills required
- Rugged, proven technology
- Highly accurate and consistent reliability
- Data logging
- Single point streaming data
- Data output in various analogue or digital formats
- Wireless system options
- Identifies eccentrically loaded and overloaded containers
- Simple onsite calibration
- Easy field repairs in case of damage
- A small and lightweight system with minimal power requirements
