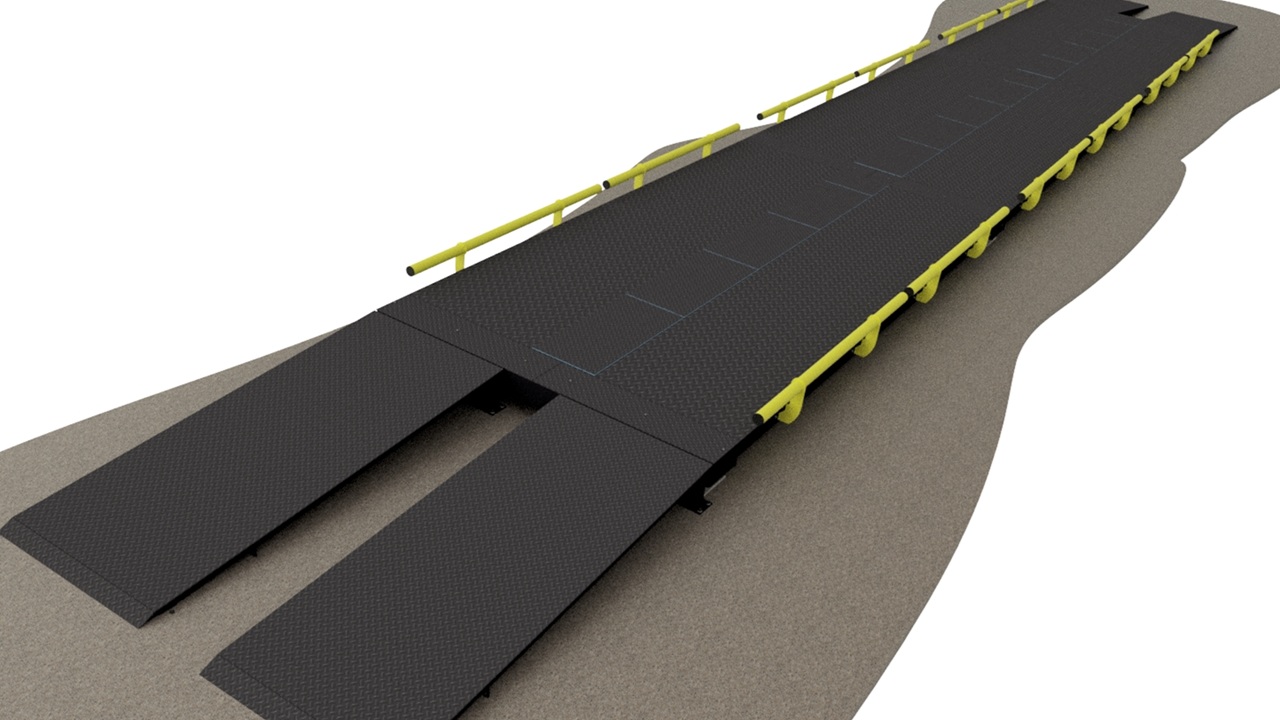

Elicom Truck Scale Eliauto Eco

Experience a new era in truck scales with the “ELIAUTO ECO.” This cutting-edge scale boasts an innovative modular structure that’s been meticulously CAD designed and rigorously tested under real-world conditions.

Key Features:

• Space-Saving Design: The “ELIAUTO ECO” impresses with its low structure height of just 320mm, a cost-saving feature that reduces the length of required ramps.
• Robust Construction: The top surface features an 8mm checker plate, ensuring extreme durability even under heavy loads and torsion stress.
• Maintenance Simplified: Service openings on the top of the scale make maintenance and service a breeze, minimizing downtime.
• Quality Materials: Crafted from certified European steel S235JR, sourced from trusted suppliers, this scale is built to last.
• Optional Metal Ramps: Opt for metal ramps to enhance accessibility and convenience.
• Foundation Flexibility: Enjoy the option of flat surface installation without the need for expensive foundations, making setup efficient and cost-effective.
• Portability: Need to relocate? This scale offers quick and easy relocation for temporary sites, providing flexibility for changing needs.
• Durable Finish: Coated with epoxy paint using airless technology, the scale’s finish ensures longevity and resilience.
• Lightning Indicator Protection: Your investment is safeguarded with lightning indicator protection.
• Precision Weighing: Featuring double shear-beam IP68 load cells and spherical self-centering oscillating joints that compensate for thermal expansions, this scale guarantees safe, accurate weighing.
• Certifications: It undergoes metrological verification and is produced with certified European steel S235JR under an integrated quality assurance system ISO9001:2008.
• Global Ready: Designed for easy export and transportation by truck or sea container, it proudly bears the “Made in Bulgaria” mark.

Read More

UTILCELL 740CP/D Load Cells for Truck Scale

UTILCELL (Spain) - UTILCELL presents the NEW 740CP and 740CPD (DIGITAL) compression load cell models for truck scale applications.

Its main novelty is the new anti-rotation system, composed of two planes instead of PIN, which makes it more robust and with a greater resistance against lateral displacements of the scale and load cell inclinations.

They are built in stainless steel and hermetically welded, with IP68 (EN60529) and IP69K (ISO 20653) protection, adapted to work in extreme climates, with a limit temperature range from -50ºC to +80ºC. It features a high accuracy class of 4.000 divisions OIML R60 class C and incorporates an anti-scratch protection in its standard version.

In the digital version, the 740 CPD load cell incorporates the RS-485 fullduplex digital interface, with a high measurement speed of 200 readings/second. Another great advantage of the 740 CPD model is the ease of corner adjustment and individualized diagnostics for each digital load cell.

These two cell models are available in nominal capacities from 15t to 60t and are specially designed for truck scales and high capacity weighing systems.

Read More

Balanças Marques PCM M1500e

Innovation is part of our DNA and from the beginning that our weighbridge is distinguished by being at the forefront and pioneering the implementation of major advances in engineering and technology.

The PCM M1500e weighbridge has a rigid and intelligent structure, with technical profiles specially designed and calculated for this model, which adds more stability and strength.

With the best quality sheet metal, the new intelligent profiles are laser-defined and fully produced in the latest robotic welding section of our metalworking unit.

The PCM M1500e is fully configurable in versions ranging from 4 to 12 load cells, being 100% compatible with analog and digital load cells Model MC-CT.

ADVANTAGES OF PCM M1500e:

• QUICK INSTALLATION - Installing a PCM M1500e takes less than a day. It has been developed so that it can be installed easily with the use of few human and technical resources, through a fully modular factory prepared.
• FLEXIBILITY OF USE - The PCM M1500e has the advantage of being easily disassembled and transported for use at another location, with total use of the equipment.
• PRODUCT READY TO GO - Balanças Marques guarantees its customers all the convenience and ease of not needing to hire other services following the acquisition of a PCM Marques, since we provide a full turnkey service.
• GLOBAL COMPETITIVE PRICE - The PCM M1500e can be used in multiple locations and without related costs to construction or destruction of civil work, at least significant, and because it saves the customer from hiring other companies in other related services, such as the CE verification and legalization of equipment.
• RECOGNIZED QUALITY - Balanças Marques is the largest Iberian manufacturer of weighbridges for weighing trucks and it probably is the company in Europe that most manufactures scales, producing, on average, about 20 meters of bridge per day.

Besides the numerous prestigious clients nationwide, the weighbridges Marques are present all over the world. We export more than 90% of our production.
