Nominated for Best Weighing Instrumentation

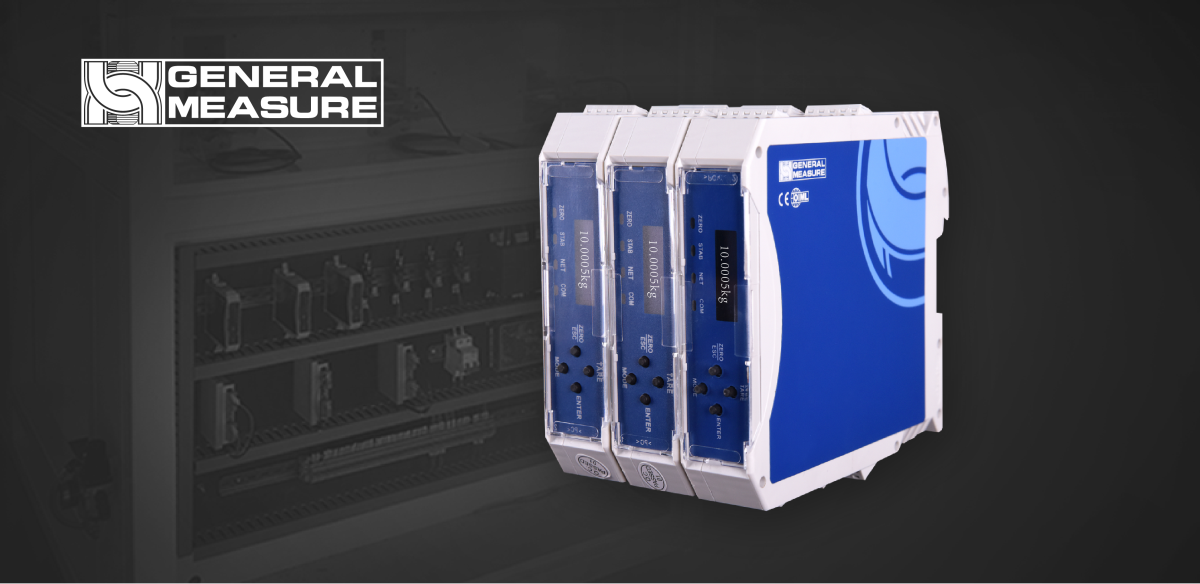

General Measure Rail Mounted Digital Weighing Transmitter GM7702
General Measure Technology Co. Ltd.

General Measure Rail Mounted Digital Weighing Transmitter GM7702

GM7702, a digital weighing transmitter from General Measure with the standard dimension, is suitable for mounting on DIN rail in many industrial fields. Small size and flat compact design make it ideally integrate with whole weighing sector. Due to its high practicability, stability and easy operation, GM7702 can be widely applied to the industry of feeds, chemical, concrete and bitumen mixing, metallurgy smelting, etc..

  • With RS232/485 and support remote control
  • Equipped with 2 IN 3 OUT I/O
  • Small size and flat compact design with standard 35mm DIN mounting.
  • High Precision: A/D converter 120/240/480 times/sec.
  • Optional 16bit high-precision analog output: 0~24mA, 0~5V, 0~10V and user-defined analog output

Read More

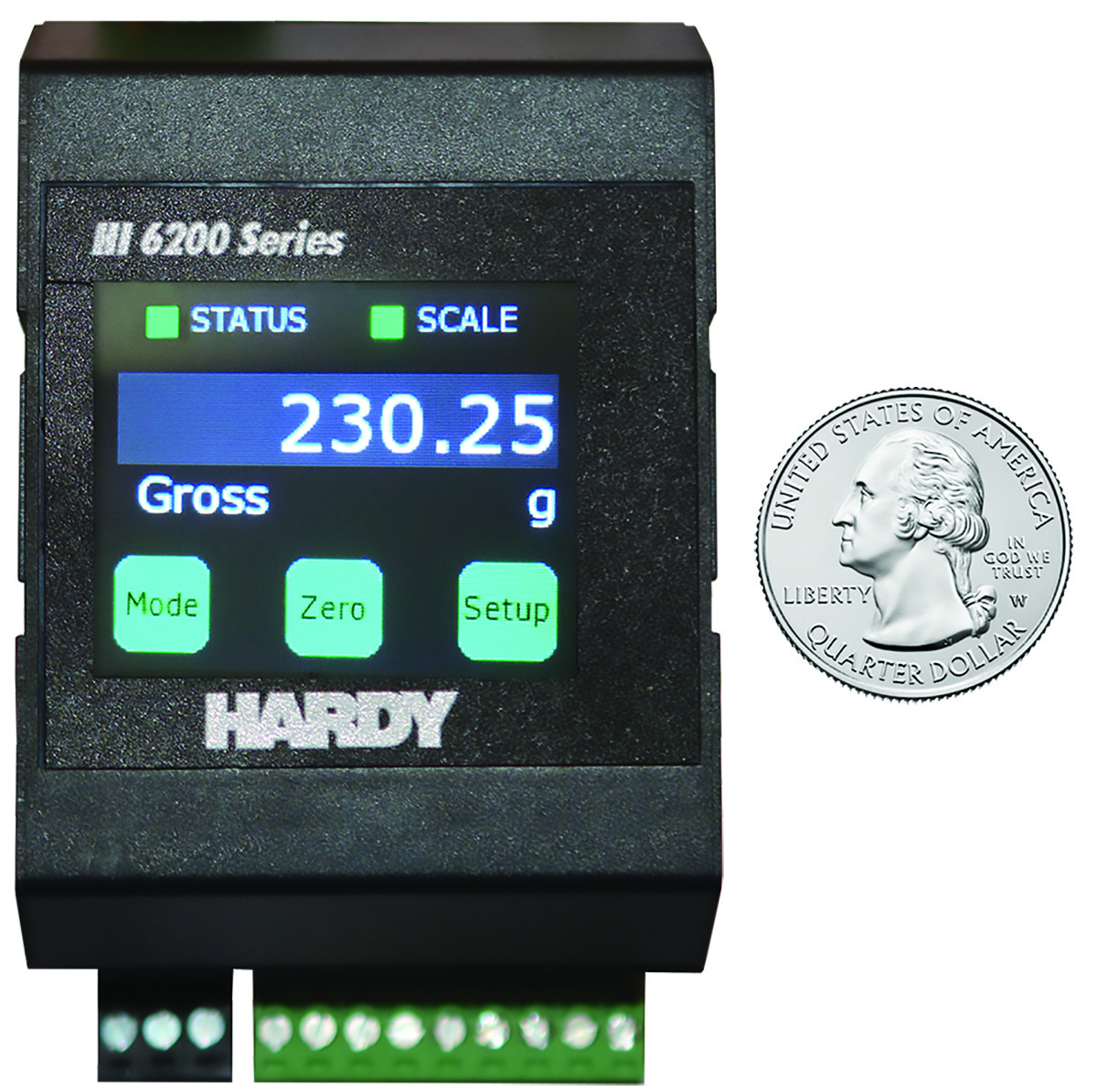

Hardy Small and Mighty HI 6200 Weight Processor
Hardy Process Solutions

Hardy Small and Mighty HI 6200 Weight Processor

New Hardy HI 6200 Single Channel Weight Processors Designed for OEM Applications

Accurate, Stable and Fast Weight Readings in an Ultra Compact Package

The Hardy HI 6200 series are  high performance single-channel Weight Processors (featuring EtherNet/IP or PROFINET).  Weight Transmitters featuring 4-20mA Analog communications are also available in the same form factor.

See the YouTube Video: https://youtu.be/8LTFQfLVqOQ

The EtherNet/IP and PROFINET HI 6200 models enable IIoT (Industrial Internet of Things) compatibility, remote diagnostics, 32-bit ARM Core processing, a 100 Hz update rate and a color touch-screen display.

Ultra-compact at just 2 inches wide and 3 inches high (without connectors), the HI 6200 series saves cabinet space, allowing for high density panel design over traditional weighing instrumentation, reducing both machine cost and control cabinet footprint.

The HI 6200  is designed to replace signal conditioners and analog strain gage transmitters with clean 4-20mA Analog signals or fieldbus connectivity. The HI 6200 series enables users to reap the benefits of IIoT device level connectivity though a built-in Webserver or directly via the UDP Transport Layer.

EASE OF USE
The intuitive 1.8” TFT-LCD color touch screen interface is thoughtfully designed so that anyone with basic scale knowledge can set-up and operate the instrument without having to read a manual or receive instruction. Despite its tiny size, the high contrast color TFT display provides crisp easy-to-read measurements and instrument status.

SOLID PERFORMANCE
Powerful 32-bit  ARM Core processing or 16-bit processing (Analog models), state of the art hardware design, combined with Hardy’s WAVERSAVER® technology ensure fast stable weight readings in even the most adverse conditions that often plague process control. As a co-processer to a control system such as a PLC, DCS or PAC, the HI 6200 delivers 100 updates per second of processed weight data at resolutions exceeding 1:10,000 without placing additional burden or delay into control loops that depend on  accurate, stable and fast weight readings from analog sensors.

The HI 6200 4-20mA Analog is designed to replace signal conditioners and analog strain gage transmitters, providing OEMs, Systems Integrators or machine builders the advantage of C2® Electronic Calibration. The color touch screen display also enables Zero and Tare, which are not functions typically available directly on Analog transmitters.

HARDY PROCESS TOOLBOX
All versions include the Hardy Process Toolbox, a proprietary set of productivity tools that includes C2® weightless calibration, WAVERSAVER®, Integrated Technician system diagnostics, and a suite of control integration tools such as a Rockwell EDS_AOP, Faceplates, and PROFINET GSD files.  The Analog Version features C2® zero and tare functions through the TFT display.

Read More


Minebea Intec Programmable Weighing Cabinets Truck-X
Minebea Intec

Minebea Intec Programmable Weighing Cabinets Truck-X

Minebea Intec's programmable weighing cabinets help you automate the weighing process without the need for a computer. For these terminals, we offer standard software for various applications, including vehicle filling and weighing. Of course, you have the possibility to configure the terminal yourself according to your specific needs.

Read More

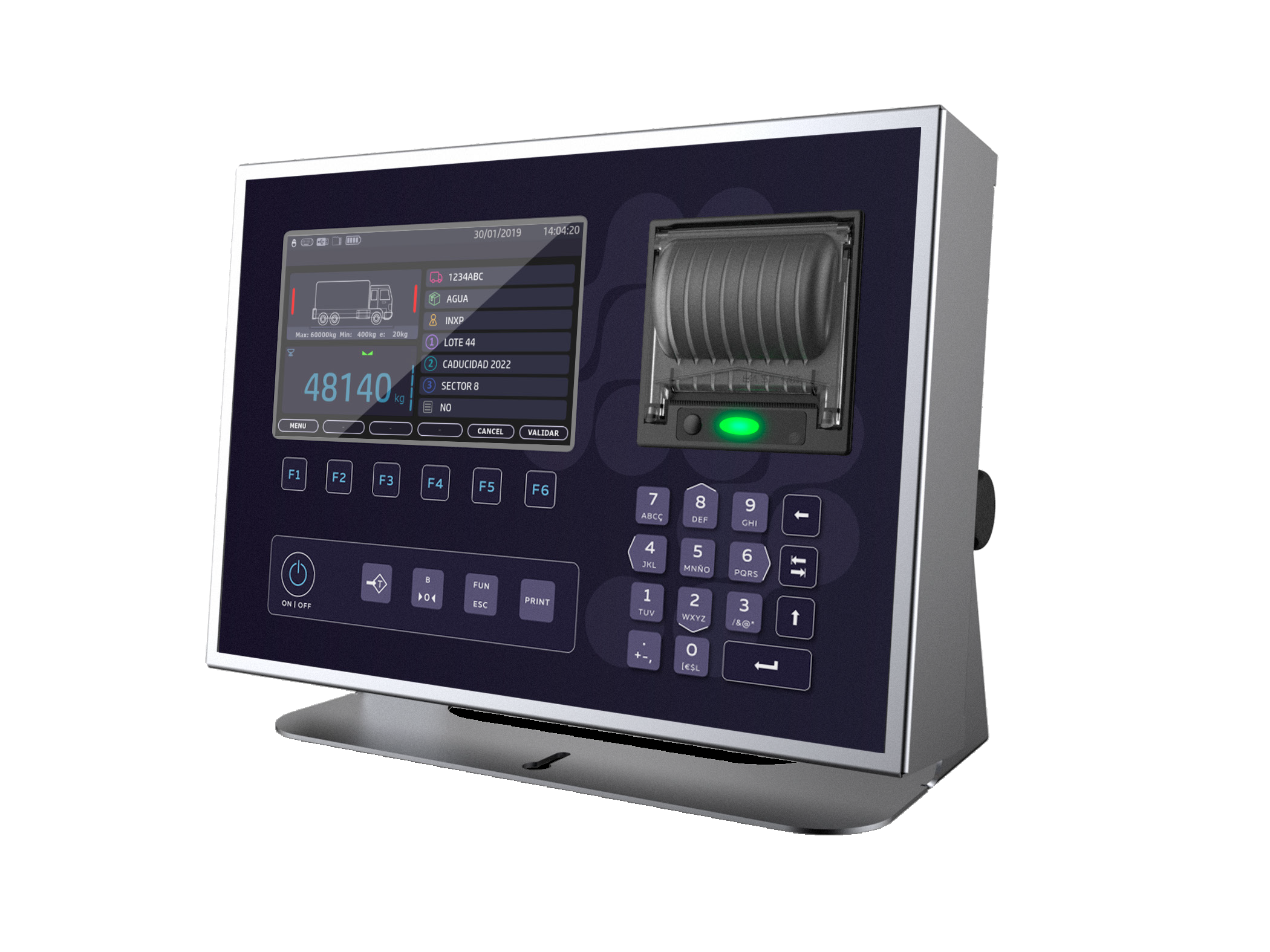

Sensocar SCA30 & SCA31
Sensocar

Sensocar SCA30 & SCA31

SCA30 & SCA31: “A new vision in weighing”.

A professional weighbridge is not anything to play with. Commercial transactions depend on the accuracy of the weighing system and several operations are required to ensure the full activity of the vehicles involved.

Only a professional equipment ensures this. Like SENSOCAR’s newest indicator series SCA30 & SCA31.

Built-up in stainless steel this new range with a pioneering graphic interface supports all activities and operations involved in a weighbridge: from recording vehicle plates to 1st and 2nd weighings. Over 500 records per table and 5 available custom tables ensure a huge database and the retrieval of up to 1,000 recorded weighings.

Custom ticketing printing and reporting, back-up copies, user profiles, system diagnosis, import/export of records, custom start-up logo, firmware update via USB … and many others features turn SCA30 & SCA31 devices into the most powerful tool for the full control of the weighbridge.

Available in analogue and digital (over 50 protocols supported, including Modbus RS-485), with or without embedded printer, these devices are released with 2x RS-232 (or RS-4585) ports and 2x USB host ports to plug-in universal peripherals such as a mouse or a keyboard, as default. An optional Ethernet port can be added to directly carry the weighing signal to any computer within an Ethernet network.

The SCA30 is the desktop version and the SCA31 the wall version; this last one can also extend its standard features through a modular version via cartridges, which enables other communication and input/output options, such as PC connection via USB or radio-frequency, dosage via relays, analogue output 4-20mA,…

Used in a digital weighbridge, the SCA30 / SCA31 can monitor the status of every single load cell in real-time and predict any potential failure before it may occur, keeping the system performing at 100%. This preventive maintenance ensures no idle times and a longer life cycle and profitability.

A professional solution for a professional activity.

Application:

  • Weighbridges and truck scales (with 5 types of weights).
  • Commercial transactions.

Main features:

  • 7’’ graphic display.
  • Stainless steel housing.
  • For analogue and digital systems, supporting protocol Modbus RS-485.
  • With or without embedded printer.
  • Wall (SCA31) and desktop (SCA30) versions.
  • 2x RS-232 (or RS-485) ports and  2x USB hosts (peripherals), as standard.
  • Ethernet port optional.
  • Additional communication and I/O options via modular SCA31 CRT version.
  • Over 2,500 records.
  • Custom tickets and reports.
  • Firmware update via USB.
  • Import / export of records.
  • System diagnosis.
  • Backups.
  • User profiles.
  • Monitoring of vehicles-in-transit.
  • CE and OIML certified.

Read More

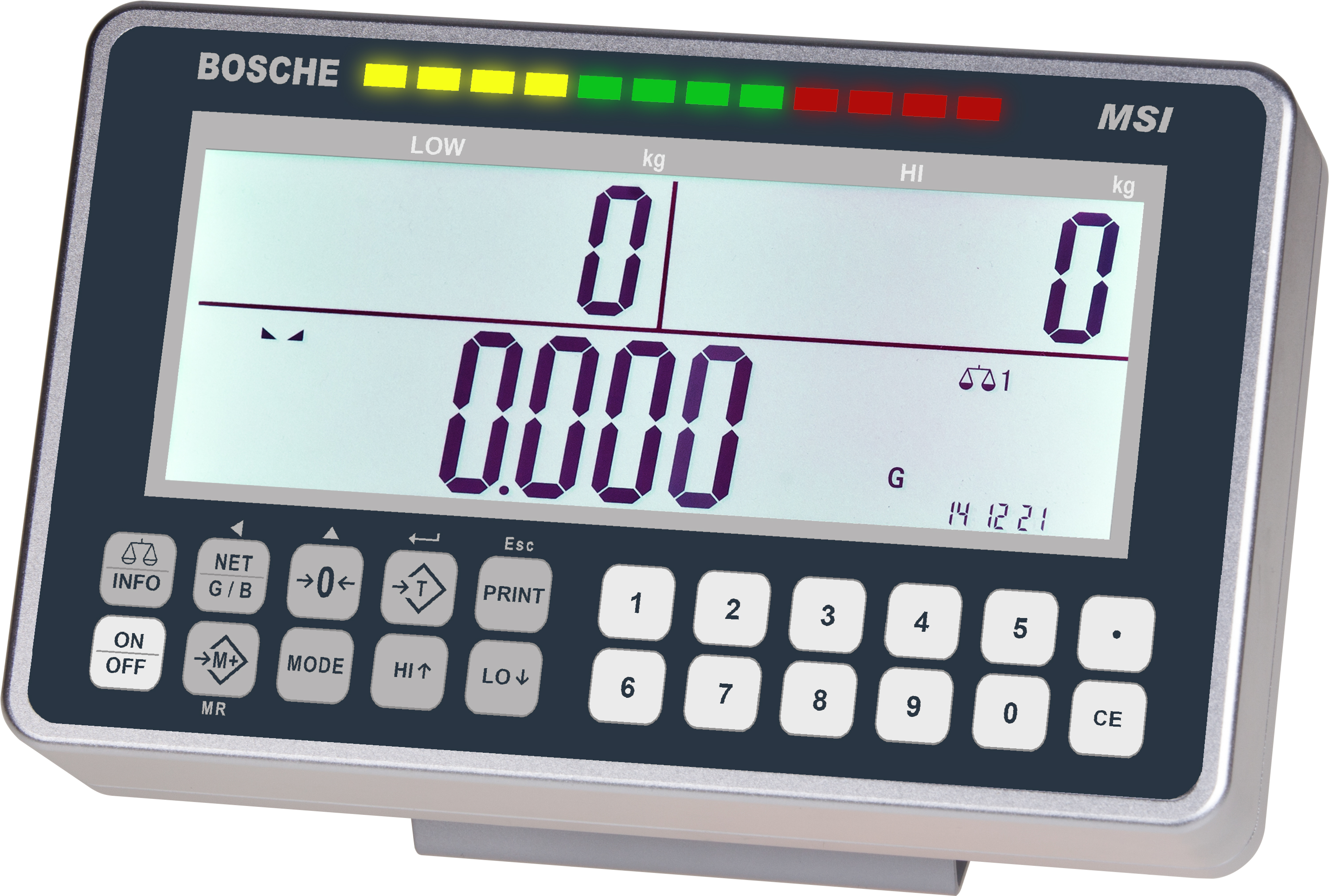

Bosche Weighing Terminal MSI
Bosche GmbH & Co. KG

Bosche Weighing Terminal MSI

The compact weighing terminal with simple operation

The robust MSI scale display was made for comfortable weighing. It has three LCD displays which are enabling the operator to see all important data at a glance: The set limit values (Hi / Lo) and the current weight.

You can determine the tolerance range quickly and easily. With the help of the checkweighing function, the limit values (overweight and underweight) can be selected fast using the numeric keyboard. In this way the sample can be weighed exactly within the set tolerance range. The integrated traffic light visually supports portioning, dosing and sorting (Overweight => red, permissible weight => green, underweight => yellow).

The tare function of the scale enables you to tare / set the weight of a container up to the full capacity of the scale.

Features:

  • Suitable for all check and portioning scales
  • Accuracy class III and IIII
  • Safe and non-slip installation with rubber feets
  • Three illuminated displays - weight, lower und upper limit
  • Numeric keypad
  • Selectable audible signal
  • Alibi memory with date and time
  • Robust aluminium housing
  • Extremely simple, user-friendly operation
  • Can be mounted as a standing or table top device
  • WiFi / Ethernet
  • Configurable Protocol printout
  • Checkweighing
  • Portioning of meat, dough, fish, poultry, salad plates in canteens etc.

Read More

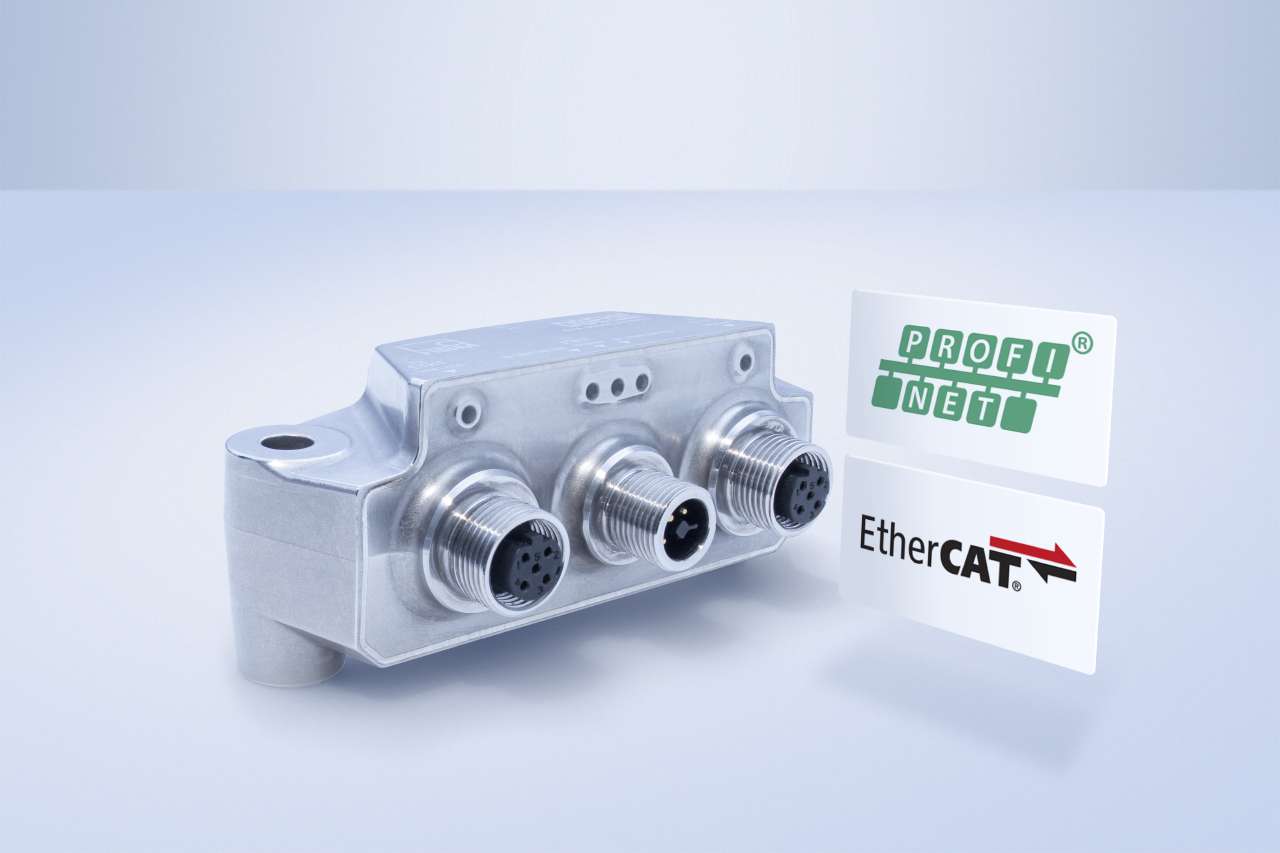

HBM: Hygienically designed Digital Sensor Electronics (DSE-HIE)
HBK - Hottinger Brüel & Kjaer

HBM: Hygienically designed Digital Sensor Electronics (DSE-HIE)

The innovative weighing electronics, DSE-HIE, digitizes signals from analog load cells in line with modern and fast industrial Ethernet protocols (PROFINET RT/IRT, EtherCAT) via an integrated multi-protocol unit. It includes built-in health-monitoring and error-detection.

Due to its compact and hygienic design, state-of-the-art interfaces and different wiring options, the signal conditioner can easily be installed close to the sensor. The standardized CiA 461 command-set and a revolutionary, responsive web interface, allow for an easy set-up and operation of the DSE-HIE within seconds.

DSE-HIE is ideal for use in highly dynamic and automated weighing applications, such as filling, dosing or packaging processes. It can be employed in the most demanding environments due to its hygienic design and IP69k protection class.

  • High precision: A/D converter 24-bit resolution, temperature compensated, delivers 2000 measuring values per second
  • Small size and flat compact hygienic design: easy to mount and easy to clean (CIP)
  • Easy to automate via industrial interfaces PROFINET(IRT) and EtherCAT
  • Intuitive webserver for easy set-up and service within seconds
  • Legal for trade certification in preparation


*DSE-HIE will be available for sale soon

Read More

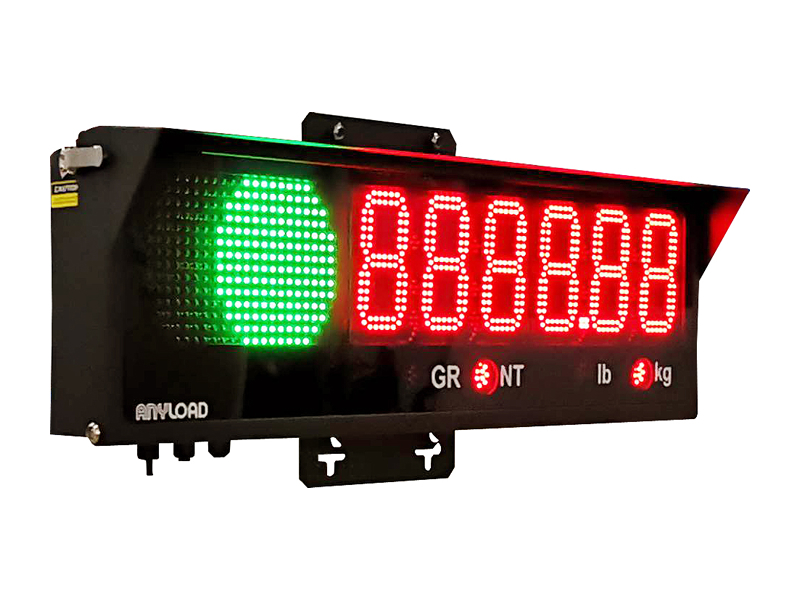

Anyload 808BH Remote Display
Anyload Weigh & Measure Inc.

Anyload 808BH Remote Display

Newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install.

Great Visibility:

  • Built-in Red & Green Light
  • Double-row discrete LED, 6 digits, 5” height, 7 segment
  • Wide viewing 120° angle
  • Auto brightness adjustment
  • Mirror display
  • RED / GREEN Lane Control
  • Smart Auto-Learn Technology

Service Friendly:

  • Modular design, External membrane keypad, Hinged front cover, Pivoting internal electronics plates

Enclosure:
Weather proof design, Visor to protect from sun or rain shade, Wall & Pole mount kit, Breather vent

Read More
