General Measure Weighing Transmitter GMT-P1

The GMT-P1 is an OIML approved panel-mounted weighing transmitter that offers advanced vibration filtering and tested ability to perform stably under the interference of harsh industrial environments. It is customized for dynamic weighing systems with a high demand for reliability, response speed, and accuracy.

• OIML approval;
• With second-generation vibration cancellation filter;
• Calibration without weights by loadcell sensitivity;
• Standard RS232 and RS485 selectable by the switch;
• Selectable A/D sampling 30/60/120/240/480/960 times/sec.;
• Compact design for ideally mounting into the control panel;
• Can be applied for various applications, such as chemicals, feeds, rubber and plastics, lithium battery, and so on.

Read More

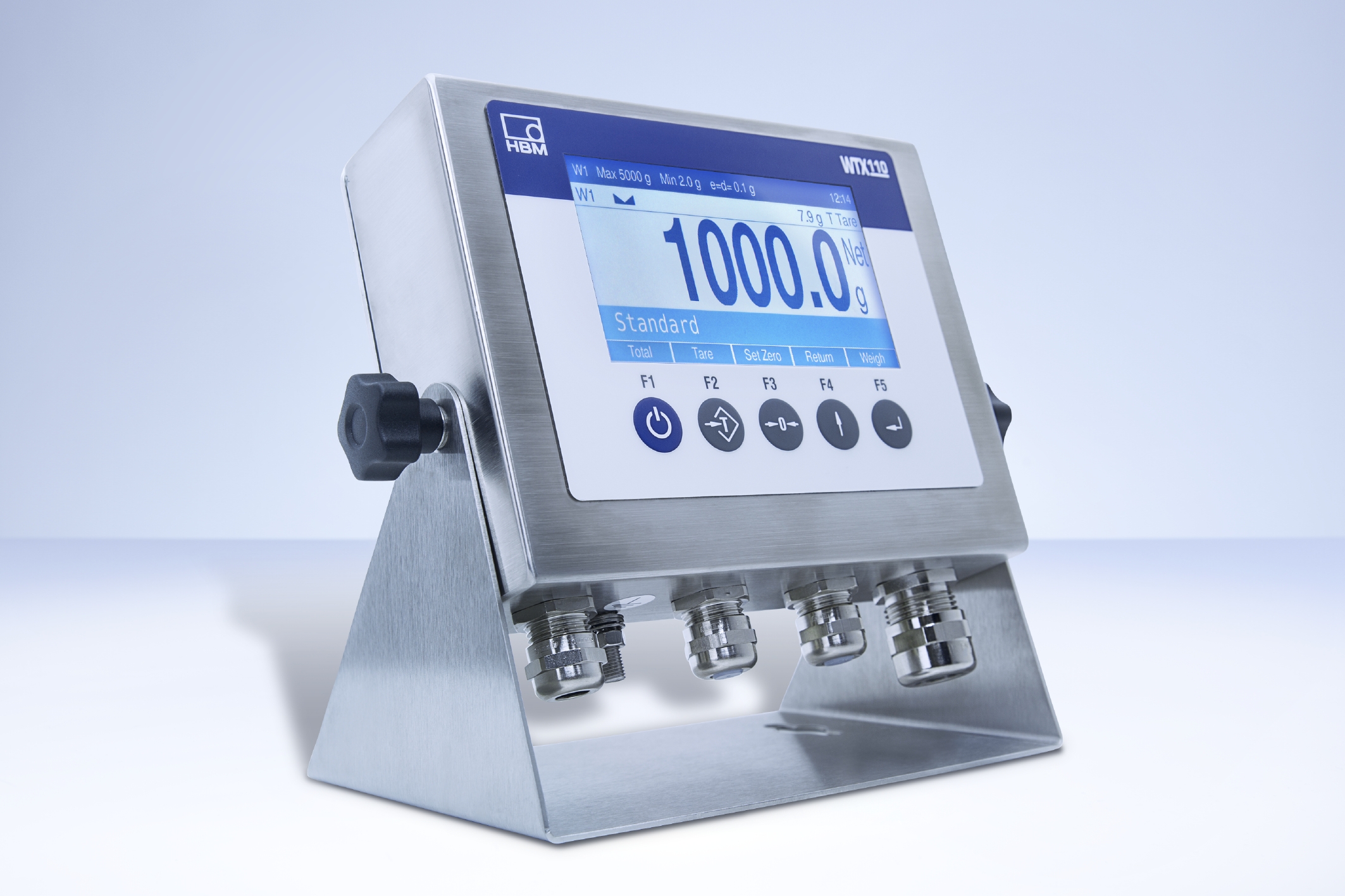

HBM WTX110-D Legal-for-Trade Weighing Terminal for Industrial Environments

The WTX 110-D is the latest addition to HBM’s award-winning WTX weighing terminal series. It was developed for on-site weight indication in harsh environments and can be connected to up to 32 digital load cells. Easy and comfortable operation as well as robustness and a legal-for-trade resolution make the WTX 110-D an optimal choice.

• Suitable for static and dynamic weighing, filling, and dosing applications
• Robust stainless-steel housing; IP69K degree of protection
• Resolution: 10.000 e (OIML Certificate)
• Table stand, wall-mounting, or control panel installation
• Optional: Ethernet TCP/IP interfaces for intuitive weighing-technology software PanelX or WTX mobile app
• Optimal price-to-performance ratio

Read More

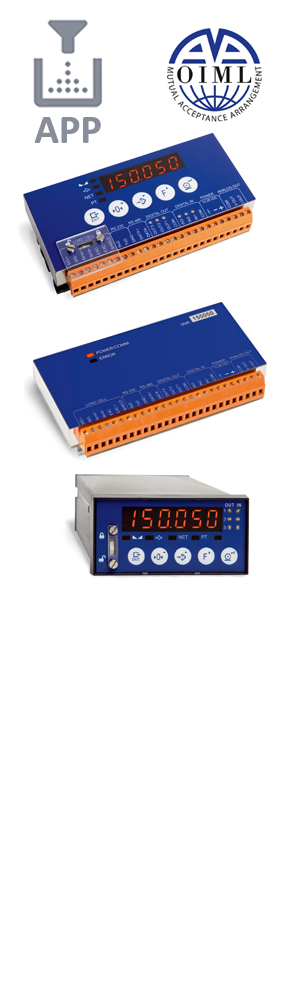

UTILCELL SWIFT Weighing Indicator and High-Speed Transmitter

UTILCELL (Spain) - The SWIFT is a Weighing Indicator and High-speed Transmitter, especially indicated for Process Weighing & Machinery, in both static and dynamic applications. Now is available with the specific Dosing and Filling Application (APP) turns easy the control of the dosing processes of filling and dosing of materials.

Due to its many possibilities of data transmission, smart weighing functions, digital inputs and outputs, it is ideal for connection to PLC, PC and remote systems making easy the integration in automated systems.

• High-speed and high resolution (2400 measures per second and 24-bit ADC).
• Legal-for-trade NAWI Certification (Non-Automatic Weighing Instruments).
• RS-232 & RS-485 communication (Modbus RTU & ASCII). PROFIBUS, PROFINET & ETHERNET/IP communication.
• Analogue output configurable at 0-10 V and 4-20 mA.
• 3 Digital inputs and 3 digital relay outputs.

Some regular applications:

• PC/PLC weight transmission.
• Filling and dosing machines.
• Weighing and level measurement in tanks & silos.
• Check-weigher scales.
• High-speed dynamic sorting scales.
• Multi-head scales.

Read More

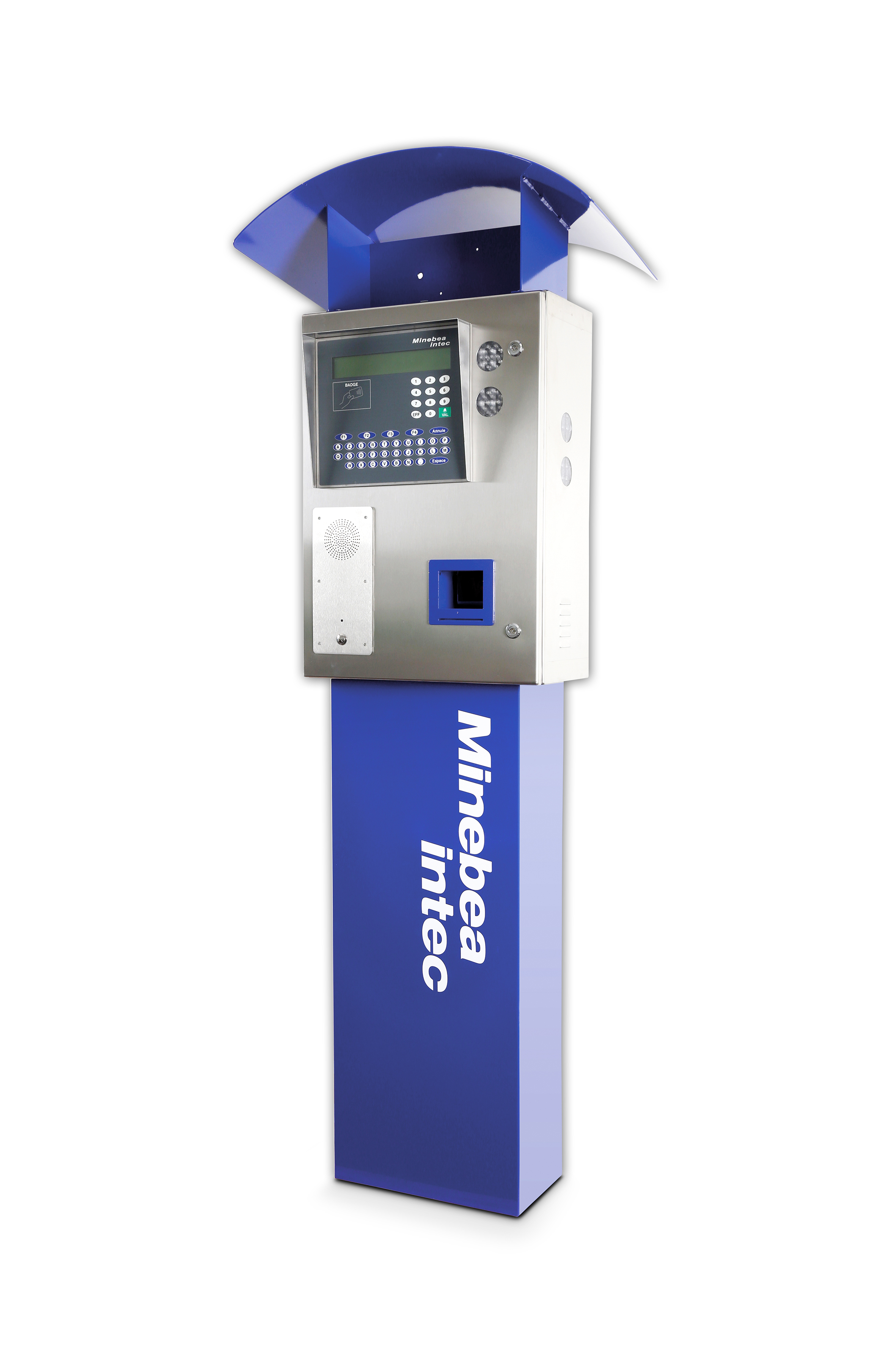

Minebea Intec Programmable Weighing Cabinets Truck-X

Minebea Intec's programmable weighing cabinets help you automate the weighing process without the need for a computer. For these terminals, we offer standard software for various applications, including vehicle filling and weighing. Of course, you have the possibility to configure the terminal yourself according to your specific needs.

Read More
