Weighing Review Awards 2022

Nominated for Best Weighing Instrumentation

General Measure CoPro Series Weighing Controller GMC-P7

GMC-P7 weighing controller is designed for dynamic weighing/packing/batching applications, widely used in grain and seeds, feeds, rubber and plastic, and the chemical industry. There are multi-software for different applications:

Single/double hopper packing;
Reduce weight method packing;
Bulk scale;
Batching scale

Metal case with SS306 and aluminum provides better EMC protection and screen protection. A 5mm front panel with the rubber seal strip makes GMC-P7 fit the control box well, which improves the sealing and dust-proof performance. Superior MCU with quad-core ARM Cortex-A53 is used for fast images and data processing. 500mA over-current protection is added for the IO port.

GMC-P7 supports mouse and keyboard control by USB connection. It is convenient to operate when it is mounted in the anti-explosion box. In regards to communication methods, it supports RS232/RS485 and Modbus TCP.

Minebea Intec

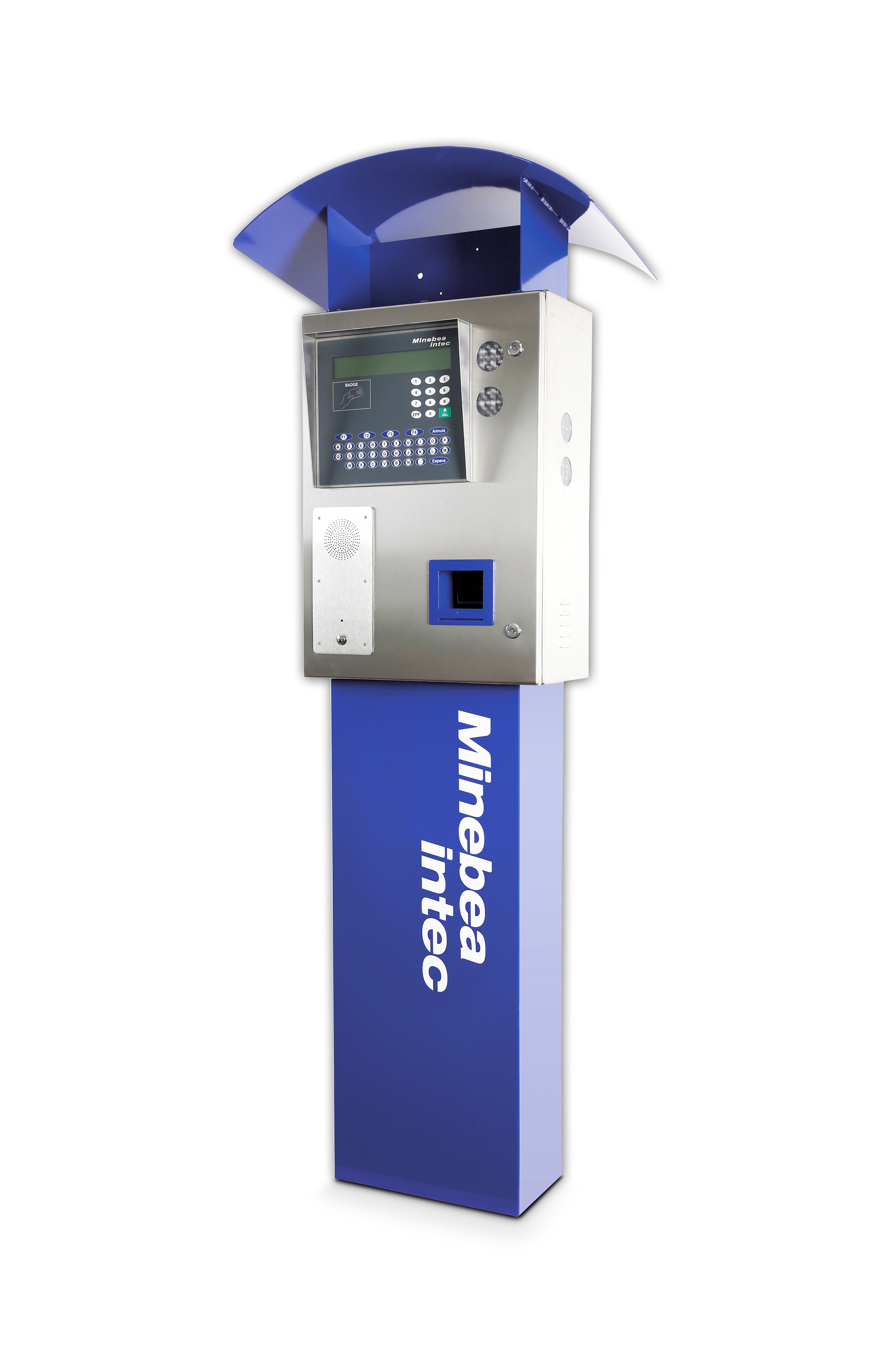

Minebea Intec Programmable Weighing Cabinets Truck-X

Minebea Intec's programmable weighing cabinets help you automate the weighing process without the need for a computer. For these terminals, we offer standard software for various applications, including vehicle filling and weighing. Of course, you have the possibility to configure the terminal yourself according to your specific needs.

TScale Electronics Mfg (kunshan)Co.,Ltd.

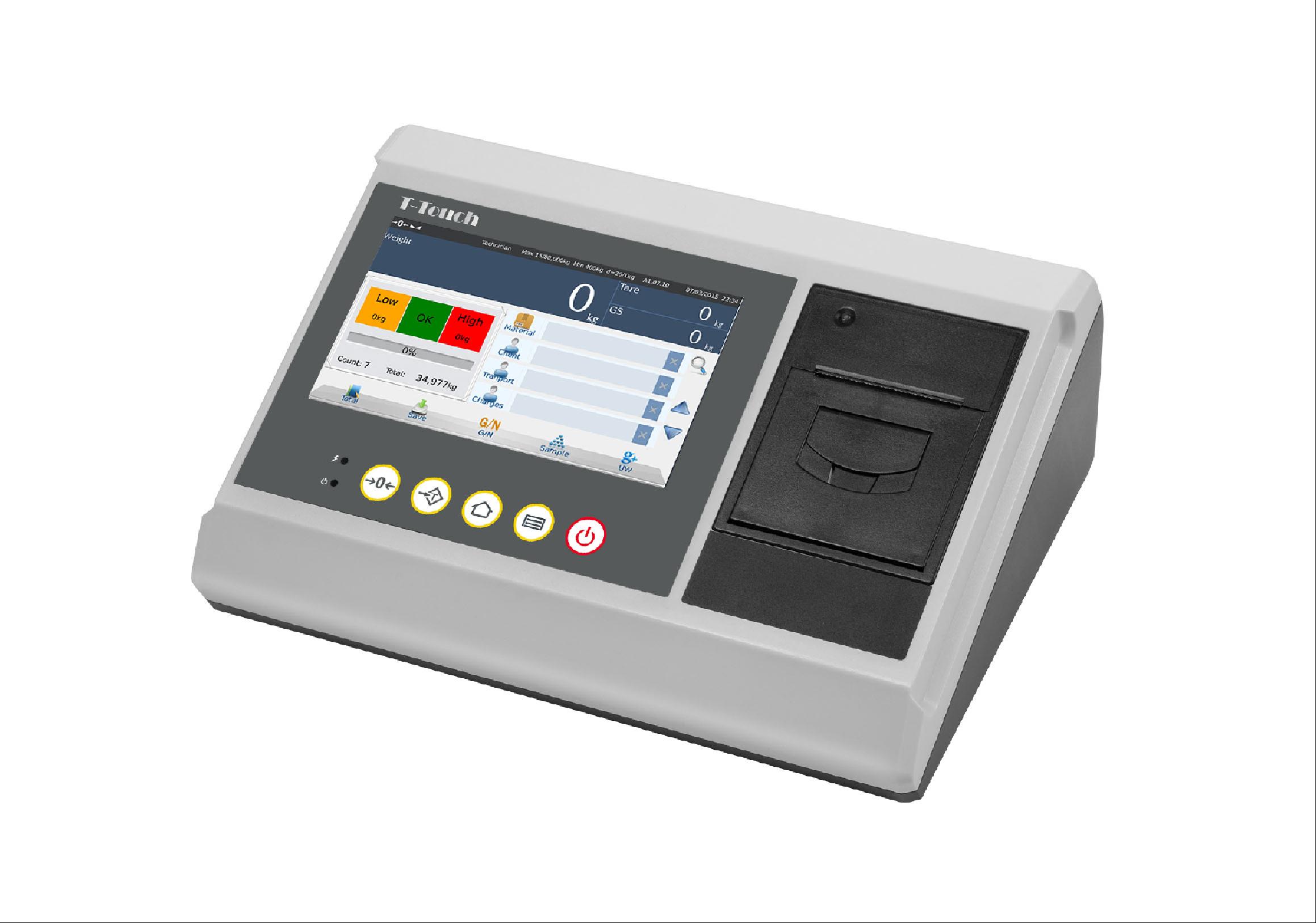

T-Scale E7 Intellegent Weighing Indicator

E7 Intellegent Weighing Indicator with high speed thermal printer, support both receipt and label, easy to load paper; Thanks to the intuitive touch screen concept and multi-lingual operation; 16GB storage for saving PLU information and weighing data etc.; Import data to scale and export weihging records easily through USB,Connect to Industy 4.0 through RS232 or Ethernet for further functions; Powerful back office management software T-Touch Cerntral: It supports Lable and receipt format Design, Report management, Product management, Device management.

HBK - Hottinger Brüel & Kjaer

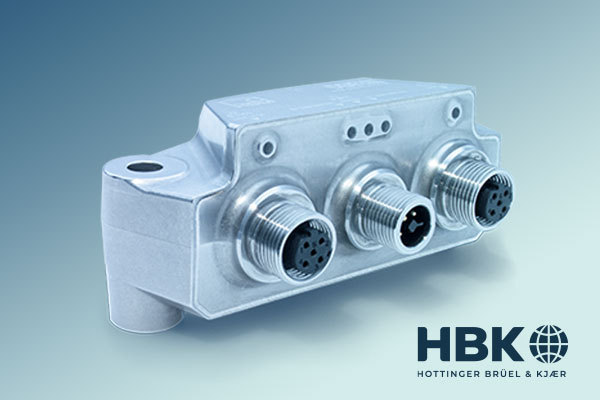

HBK DSE

HBK Digital Sensor Electronics DSE: Future-proof, Hygienic, and Specialized

DSE is an innovative blend of signal conditioner and digital weighing electronics, rounded off with easy usability, hygienic design, and ultimate precision at high speeds. It is ideally suited for dynamic and automated applications such as checkweighing, filling, dosing, or sorting, and comes with specialized process algorithms.

Signals from analogue sensors are digitized via an integrated multi-protocol unit for connectivity to standard industrial Ethernet networks (PROFINET, EtherCAT), including built-in health-monitoring and error-detection. The DSE was designed to be installed close to the sensor and is commissioned via a standardized CiA 461 command-set and an intuitive web interface.

Features:
