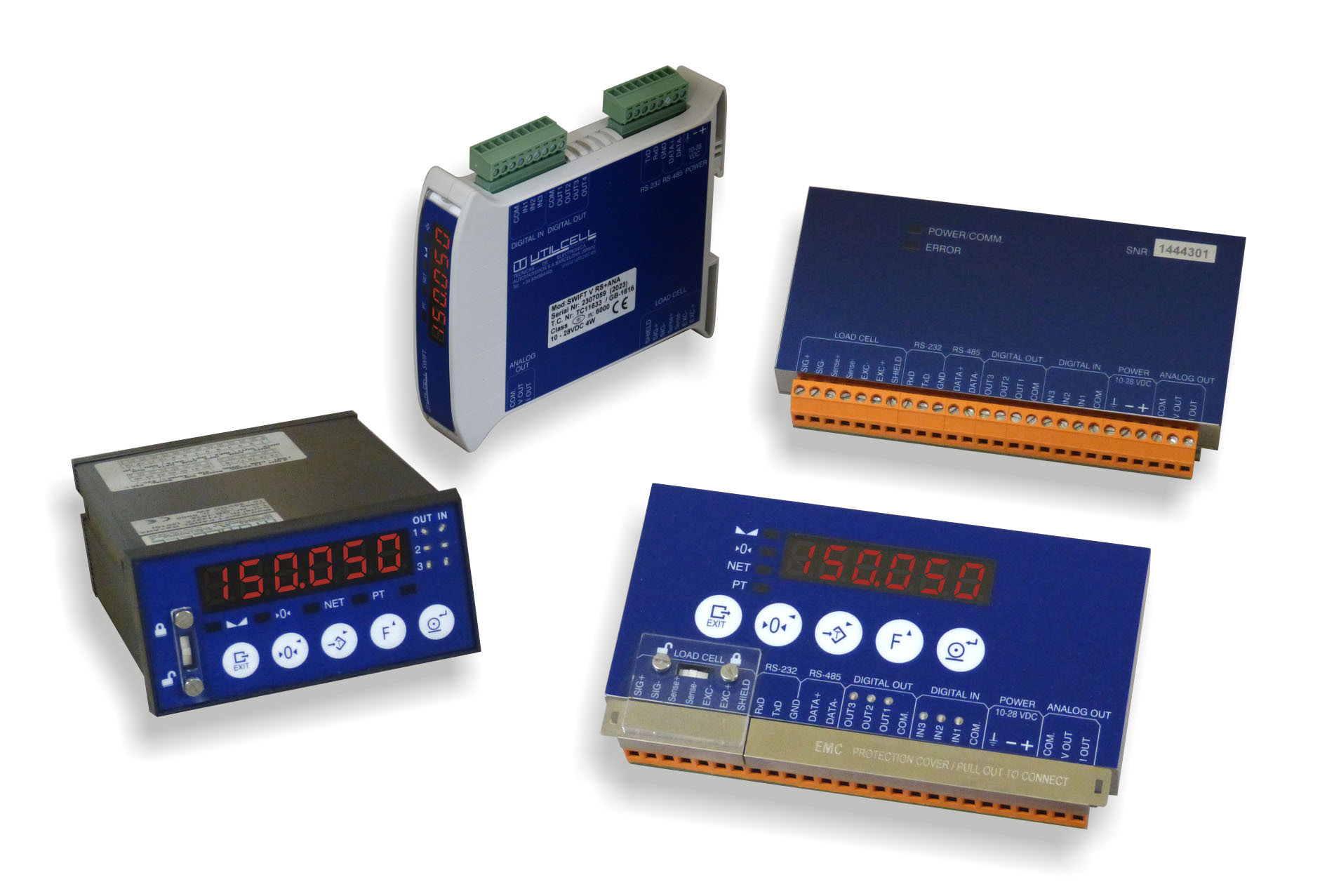

UTILCELL SWIFT

UTILCELL (Spain) - The SWIFT is a Weighing Indicator and High-speed Transmitter, especially indicated for Process Weighing & Machinery, in both static and dynamic applications. It has specific Dosing and Filling Application (APP) turns easy the control of the dosing processes of filling and dosing of materials.

Due to its many possibilities of data transmission, smart weighing functions, digital inputs and outputs, it is ideal for connection to PLC, PC and remote systems making easy the integration in automated systems.

• High-speed and high resolution (2400 measures per second and 24-bit ADC).
• Legal-for-trade NAWI Certification (Non-Automatic Weighing Instruments).
• RS-232 & RS-485, PROFIBUS, PROFINET & ETHERNET/IP communication.
• Analogue output configurable at 0-10 V and 4-20 mA.
• 3 Digital inputs and 3 or 4 digital relay outputs.
• Different mounting formats: DIN Rail, Panel and Vertical

Some regular applications:

• PC/PLC weight transmission.
• Filling and dosing machines.
• Weighing and level measurement in tanks & silos.
• Check-weigher scales.
• High-speed dynamic sorting scales.
• Multi-head scales.

Read More

Four-channel weighing indicator General Measure GMT-X4

GMT-X4 is a DIN rail-mounted weighing transmitter with four-channel. When one of the four channels' load cells is damaged, GMT-X4 will automatically identify and give an alarm message on the screen. It has a compact design, stable performance, and easy operation, which can be used for various weighing applications, such as weight checking, loss-in-weight, liquid filling, batching, vessel and silo weighing, etc.

There are two modes: one is with four individual AD working separately; the other one is a four-channel combination mode, that is, a weighing indicator with an intelligent junction box built in can easily monitor the defaulted load cell. The main display of the combination mode shows the total weight up to 6 digits. It also has four-channel weights display and the simultaneous millivolt display.

Hardware Highlights

1. Stainless steel housing with compact design(62X134X128mm)；
2. Different configuration choices, a variety of combinations；
3. Standard: ① 4-channel of 6-wire load cell interfaces; ② RS485&RS232; ③ 4 Input 8 Output transistor I/O;
4. Option1: Modbus TCP /IP or EtherNet/IP or ProfiNet or EtherCat or CCLink IE;
5. Option2: 4 analog output;
6. Option3: 1 CANopen interface;

     (Option1,2,3 can be selected at the same time)

Read More

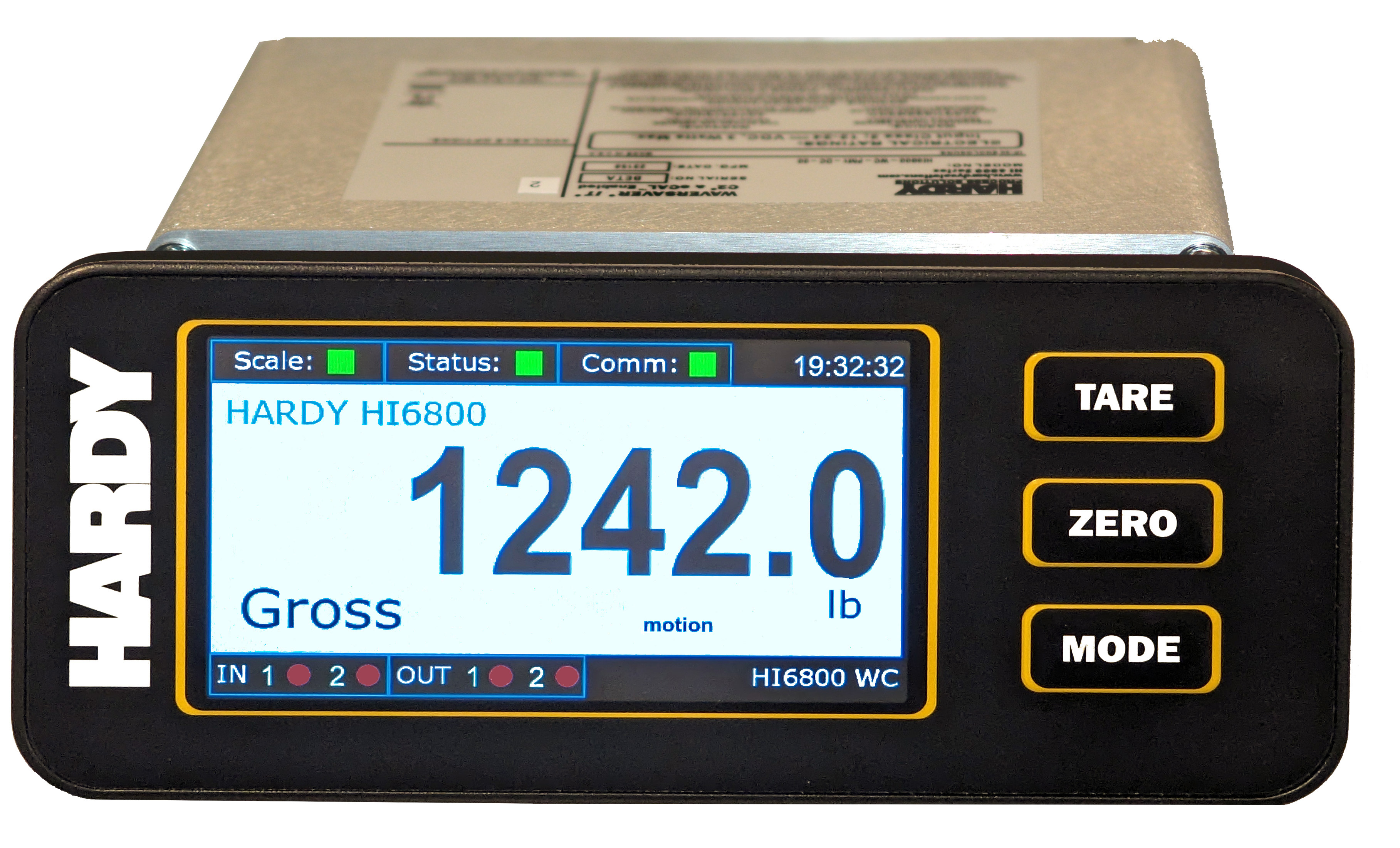

Hardy HI6800 Weight Controller with Dual-Core Processor

New Hardy HI6800 Weight Controller with Color Touchscreen Display

First Weighing Instrument with a Dual-Core Processor

The HI6800 instruments are weight controllers ideal for a wide variety of weight-based applications. The HI6800 features a dual-core processor and combines direct process control with fast, accurate and stable weight data essential to profitable manufacturing operations.

Designed to address the needs of both highly integrated and stand-alone industrial weighing applications, the HI6800 Series serves as an all-in-one weight controller.The Model HI6800 is designed for weight-based control of applications such as level monitoring, set-point control, static checkweighing, and piece/part counting. The model features an optional HI6130 (4.3-inch color TFT touchscreen) for operation and setup.

Featuring dual-port connectivity and an embedded network switch, the HI6800  makes serving up data to both control networks and information networks simple and safe.  Choose from the most popular Industrial Fieldbus protocols for control networks: EtherNet/IP or Modbus TCP/IP; while reaping the benefits of IIoT device-level connectivity though a built-in Webserver.

The Model HI6800 comes with two Ethernet ports, a microSD card slot, USB-C port, 2 digital outputs, 2 digital inputs, and a single analog scale input. The dual 10/100 Mbps Ethernet ports with integrated network switch are ideal for simultaneously linking the instrument to both control and information networks for monitoring performance, diagnostics, and process statistics. Data from the instrument can be easily served up to the Intranet, Extranet, VPN, and the Internet by utilizing the EtherNet/IP or Modbus TCP/IP communication protocols.

SUPERIOR PERFORMANCE
Featuring Hardy’s exclusive WAVERSAVER+®, even in noisy environments with excessive amounts of mechanical vibration, the HI 6800 provides a steady 1:30:000 resolution in oz, lb, ton, g, and kg at 250 updates per second.

SIMPLE SET-UP, CALIBRATION, MAINTENCE & TROUBLESHOOTING
Use Hardy’s exclusive C2® Second Generation Calibration for automatic system calibration to save hours in commissioning and routine maintenance.  By reading the calibration certificate electronically embedded in the C2® load cell sensor, the scale system can be calibrated with the touch of a button; avoiding time consuming and expensive traditional calibration procedures.

QUICK MAINTENANCE AND TROUBLESHOOTING
Comprehensive diagnostics are displayed for power, network, and weighing function status allowing users to quickly identify faults and solve issues by following on-board help instructions. With INTEGRATED TECHNICIAN®, maintain and troubleshoot the weighing system at the sensor level by diagnosing individual scale components (load cells) without the need to disconnect wiring.

Read More

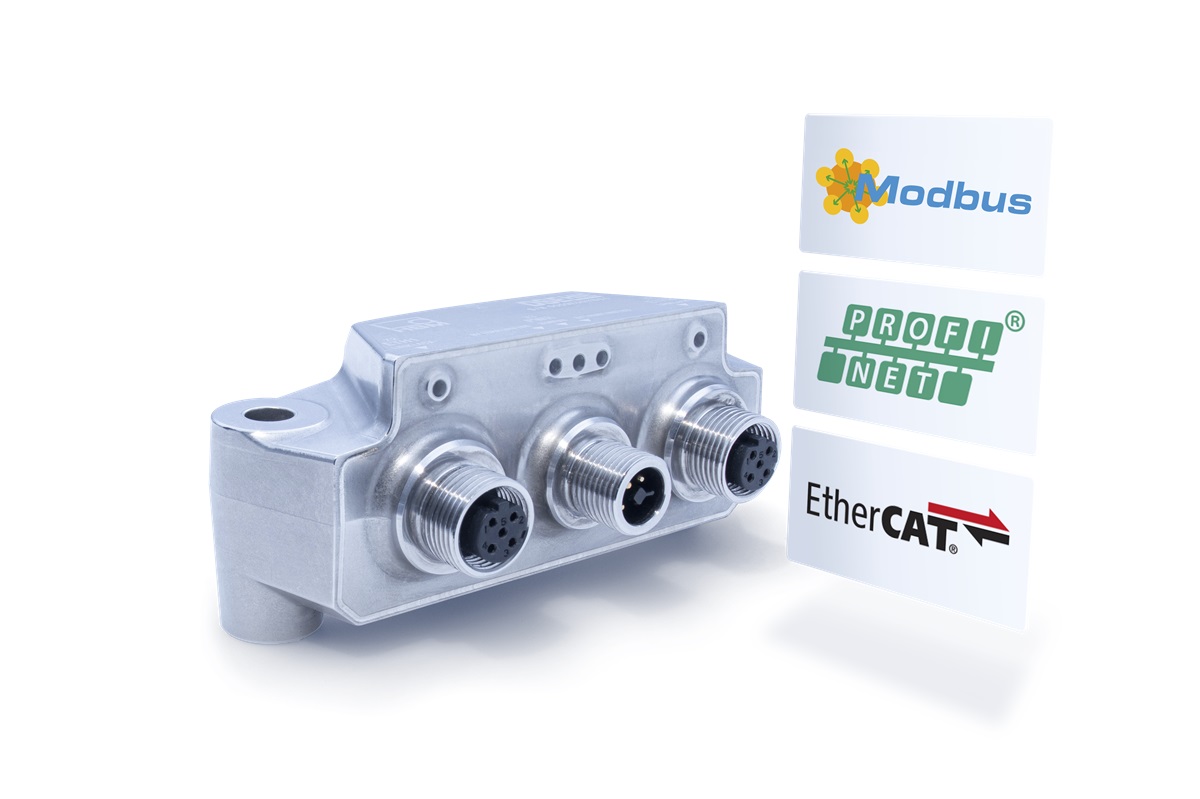

HBK DSE-HIE: Future-Proof, EHEDG-Compliant Sensor Electronics

The innovative Digital Sensor Electronics (DSE) is tailored for highly dynamic and automated weighing and industrial automavon applicavons. It digivzes signals from analog strain gauge-based sensors like load cells and force transducers, outputing them in line with common industrial Ethernet protocols (PROFINET RT/IRT, EtherCAT, and Modbus/TCP) via the integrated multi-protocol unit. The Ethernet interface and simple sensor-side installation enable efficient integration, while the standardized CiA 461 command set streamlines system setup. An intuitive web interface facilitates parameterization and data acquisition, eliminating the need for addivonal software.

Encased in a compact stainless-steel enclosure, the DSE boasts a hygienic EHEDG-compliant design, making it suitable for applications demanding strict hygiene standards in industries like food and beverages, pharmaceuticals, and industrial process and factory automavon. With IP67/68/69K protection, the device is well shielded and can withstand high-pressure cleaning or CIP (clean-in-place) systems.

Integrated Algorithms for Filling, Sorting, Checkweighing, and Container Weighing:

Optimize processes with ease: The latest process algorithms are effortlessly parameterized via the integrated WebServer. These algorithms operate in real-time, alleviating the burden on machine control and ensuring optimal outcomes.

Examine and document processes in meticulous detail, utilizing integrated frequency analysis (FFT) to verify and fine-tune operations across various standard scales, filler, and checkweighing applications.

When considering hygiene and robustness, think HBK – the ideal measurement chain for Weighing application:

With DSE weighing electronics enabling PROFINET connectivity for all strain gauge-based sensors, HBM ensures compliance with stringent hygiene standards. Alongside compatible electronics, the portfolio encompasses easy-to-clean and EHEDG-compliant load cells. The modular system also includes complementary accessories, facilitating straightforward solutions while upholding the highest standards of cleanliness.

Hygienic:

Featuring an IP67, IP68, IP69K degree of protection (available only with a connected plug) and EHEDG compliance, our product ensures the highest standards of hygiene and cleanliness. Certified by ECOLAB, it is suitable for use in environments with stringent hygiene requirements and harsh industrial settings, particularly in cold-aseptic applications.

Communicative:

Boasts excellent communicative capabilities, supporting PROFINET, EtherCAT, and Modbus/TCP protocols. Parameterization and acquisition of measured values are seamlessly achieved through the integrated, intuitive web server using TCP/IP. Optimized for daisy-chain wiring thanks to its internal switch, it offers a time-saving Plug & Work solution ideal for modern industry environments.

Precise:

Renowned for its precision, boasting a maximum accuracy of 10,000e (0.01%) and the ability to measure 2,000 values per second. With integrated filters tailored for precise weighing and automation applications, it ensures accurate results. Whether for retrofiting or integrating into new systems, it offers maximum output, making it a versatile solution for various requirements.
