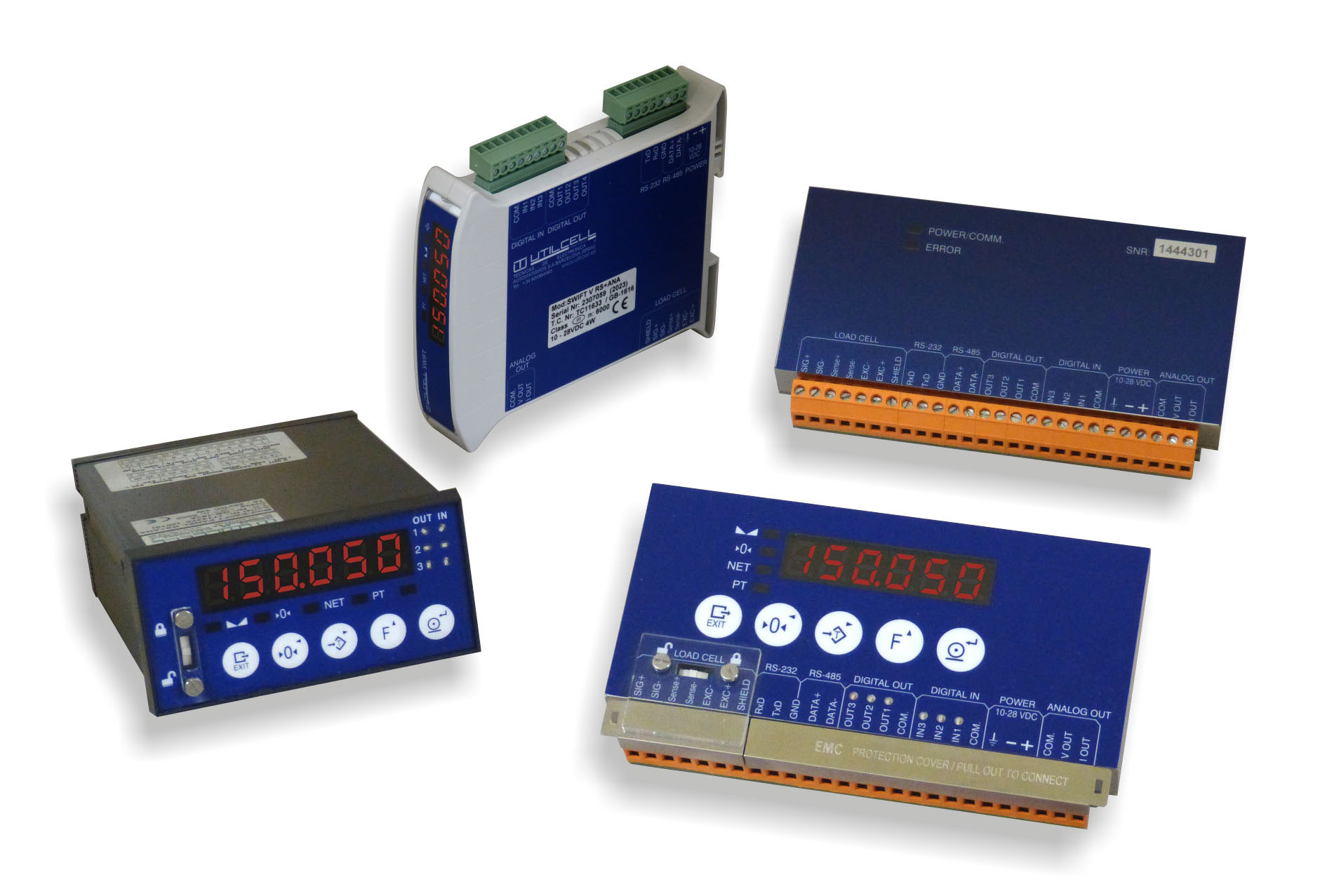

UTILCELL SWIFT

UTILCELL (Spain) - The SWIFT is a Weighing Indicator and High-speed Transmitter, especially indicated for Process Weighing & Machinery, in both static and dynamic applications. It has specific Dosing and Filling Application (APP) turns easy the control of the dosing processes of filling and dosing of materials.

Due to its many possibilities of data transmission, smart weighing functions, digital inputs and outputs, it is ideal for connection to PLC, PC and remote systems making easy the integration in automated systems.

• High-speed and high resolution (2400 measures per second and 24-bit ADC).
• Legal-for-trade NAWI Certification (Non-Automatic Weighing Instruments).
• RS-232 & RS-485, PROFIBUS, PROFINET & ETHERNET/IP communication.
• Analogue output configurable at 0-10 V and 4-20 mA.
• 3 Digital inputs and 3 or 4 digital relay outputs.
• Different mounting formats: DIN Rail, Panel and Vertical

Some regular applications:

• PC/PLC weight transmission.
• Filling and dosing machines.
• Weighing and level measurement in tanks & silos.
• Check-weigher scales.
• High-speed dynamic sorting scales.

Multi-head scales.

Read More

General Measure GMT-X1 Weighing Indicator with Weasy App

GMT-X1 is a DIN rail-mounted weighing transmitter for industrial automation. It is widely used for weighing applications like silo/vessel weighing, batching, liquid filling, etc. Through Bluetooth, it can be connected to Weasy App for configuration and monitoring.

1. OIML R76 Certification;
2. Stainless steel case with compact design;
3. Digital indicator version available;
4. Multiple communication available:

• Standard: RS4851 + RS485/RS232(Selectable)
• Hardware Option1: 3 Input 5 Output or 3 Input 4 Output relay (Optional)
• Hardware Option2: RS485+16bit Analog or 2 Input 4 Output or CAN OPEN
• Hardware Option3: Modbus TCP or Ethernet/IP or Profinet or Profibus DP;

   (Hardware Option1,2,3 can be selected at the same time)

      5. Mobile application and web page remote configuration:

• Mobile App: connect with app through Bluetooth to set the parameters and monitor the indicator status
• Embedded web: connect with PC through Modbus TCP for setting the parameters and monitor indicator status
• Programmable I/O by PLC

Read More

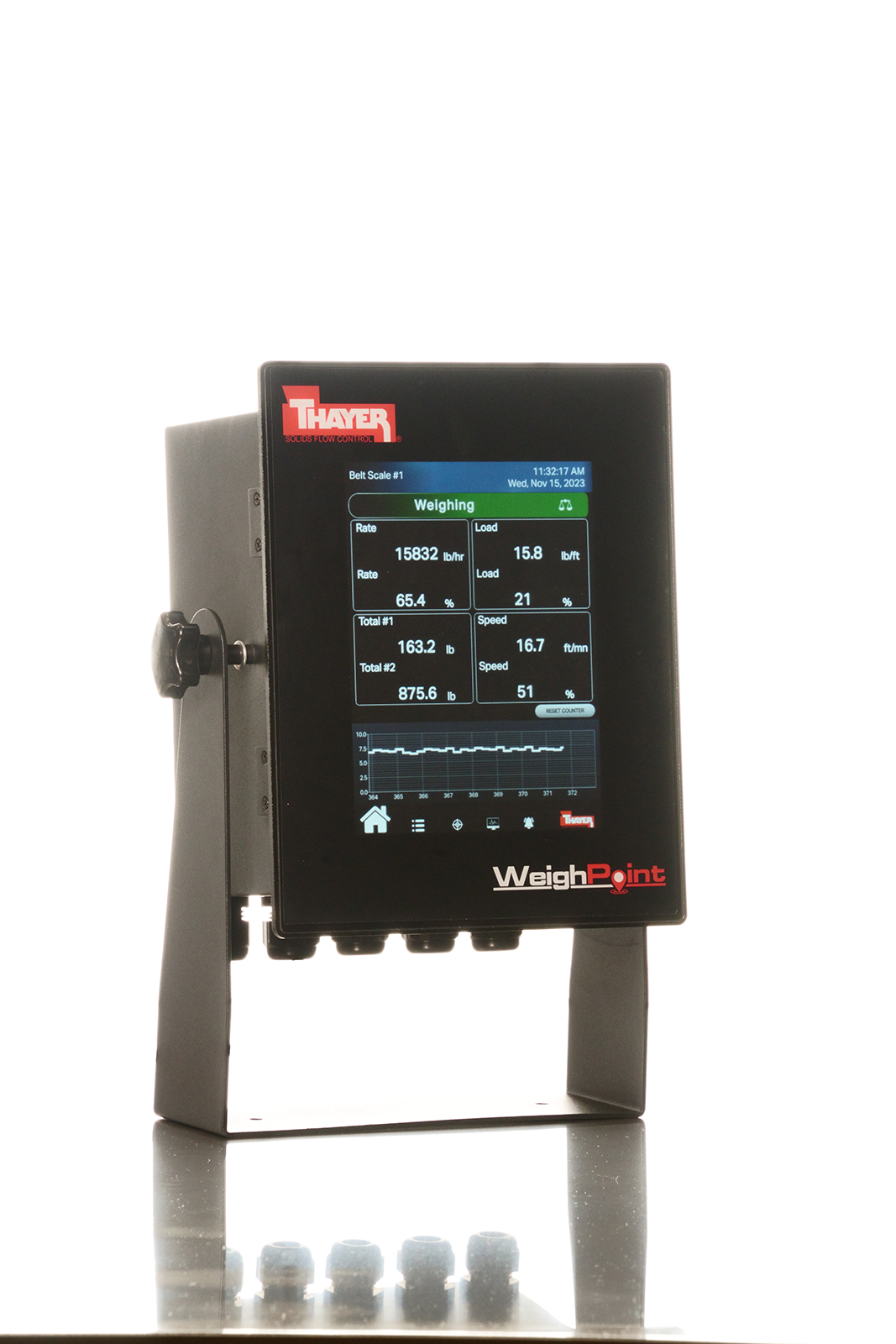

Thayer Scale WeighPoint® Integrator

Thayer Scale’s WeighPoint® Integrator is a dual-processor, touchscreen-enabled solution designed for continuous operation in harsh environments. The new instrumentation expands Thayer Scale’s line of weighing-focused instrumentation, including integrators, controllers, and U/L-certified panel solutions.

The field-mountable or panel-mountable standalone unit with HMI provides an easy-to-use interface to the company’s deep library of algorithms and functions. It is the most robust conveyor and belt-weighing integrating system on the market.

The WeighPoint® Integrator is packed with features. It is available in four configurations for flexible installation planning. It has an 8” bright touch-screen display providing high visibility even in harsh environments with an operating temperature range from -20 to 60 C (-30 to 70 C storage). There are a wide range of communications options, including MODBUS/TCP, Ethernet/IP and Profinet. The WeighPoint® system includes a field-mounted scale module that provides high-resolution digitizing of load and speed. Communication from the scale module to the main module is via CANBus to ensure high data fidelity. The dual-processor main unit ensures high display performance while offloading real-time control functions to a separate processor core.

WeighPoint® is designed for use with Thayer Scale’s versatile range of RF belt scales and Weigh belt feeders for optimal weighing accuracy and performance.

WeighPoint® Integrator Key Design Features

• 4 Configurations for flexible installation planning
• Bright, 8” touch-screen display (1024X768, XGA) provides high visibility.
• A dual-processor main unit ensures high display performance while offloading real-time control to a separate processor core.
• Wide range of communications options, including MODBUS/TCP, Ethernet/IP and Profinet
• Field-mounted scale module provides high-resolution digitizing of Load and Speed Communication
• Wide range of belt conveyor and weigh belt software algorithms
• Remote access via PC, tablet, or mobile device
• Remote diagnostics and remote service/ support capability
• Expansion modules for additional I/O capability
