Weighing Review Awards 2021
Nominated for Best Load Cells

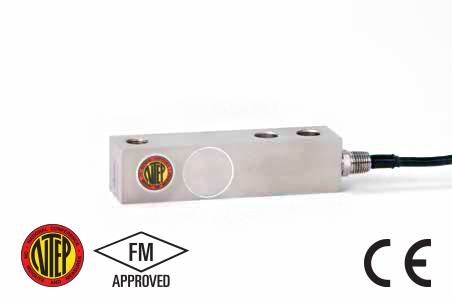

Coti Global Sensors CG-23 Load Cell
Alloy steel single ended beam load cell commonly used in small tanks, hoppers, platforms and floor scales. Common shear beam. Threaded hole. NTEP capacities 250lb - 20K.

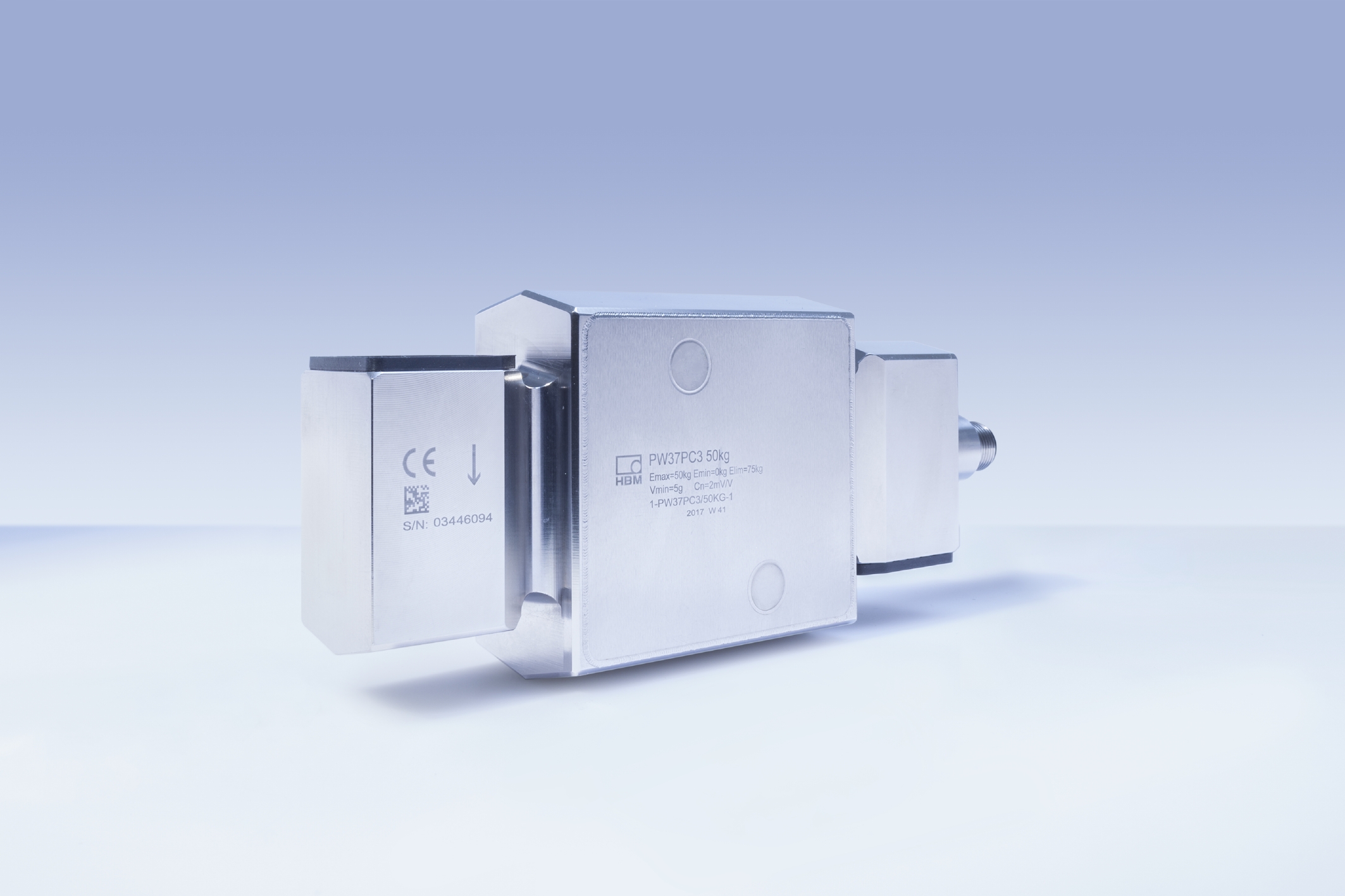

HBM PW37P Certified Hygienic Platform Load Cell
The PW37P platform load cell was specifically developed to meet the increasingly stringent requirements of the food industry. With capacities of 50 kg, 100 kg, and 200 kg, it allows hygienic weighing of higher loads and is ideally suited for aseptic filling, weighing, or packaging applications.
- EHEDG certified (Type EL Class I AUX)
- Efficient cleaning with hermetic sealing, high chemical resistance, and IP68/IP69K rating
- High degree of precision: C3 multi-range (OIML certified); Y up to 25000
- Quick and easy installation due to industry-standard mounting dimensions and M12 connector plugs
- Easy connection to the digital world with matching HBM transducer electronics DSE and PAD
- Durable weighing solution with a long service life

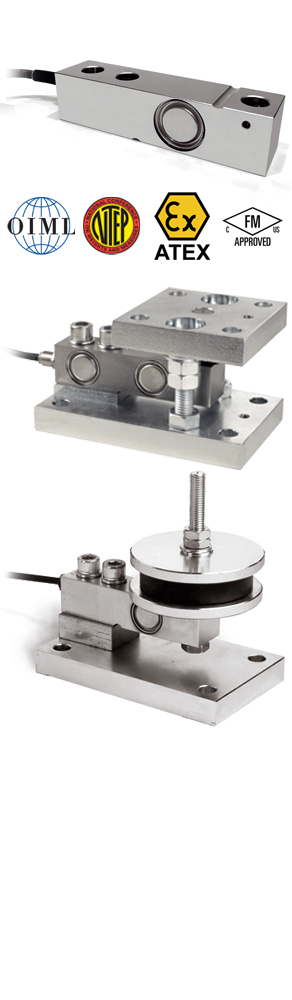

UTILCELL Shear Beam Load Cell Model 350
UTILCELL (Spain) – The load cell Model 350 (300…10.000 kg), together its mounting kits, have been designed for robust and accurate weighing in industrial processes of tanks and hoppers, with multiple advantages:
- Model 350i version: Fully stainless-steel construction. Hermetically sealed with the highest protection degree IP 68 and IP 69K.
- Model 350a/n version: Stainless steel or nickel-plated alloy steel construction. Silicone sealed with IP 66 protection degree.
- Globally used in legal weighing systems. OIML R60 Class C 3.000 divisions and NTEP Class III & IIIL 5.000 and 10.000 multiple cells.
- Highly recommended load cell for any type of tanks and hoppers in industrial weighing applications.
- High repeatability and high accuracy of the weighing values.
- Accessories available in several versions:
- Improved force transmission to the load cell due to a ball-based joint, giving the best accommodation in cases of thermal expansions, structural torsions and deflections.
- Rubber silent block for higher impact and vibration protection.
- Load foot for industrial 4-load cell platform scales.
- Superior safety systems for the utmost reliability:
- Easy installation in the tank and hopper supports, with or without the load cell.
- Blockage bolts for transport protection of the load cells.
- Upper plate with conical holes for self-centring.
- Integrated lift-off prevention system.
Minebea Intec Weighing Module Novego®
The weighing module Novego® was specifically developed to meet the increasingly stringent requirements of the food industry. This hygienic all-in-one solution boasts a range of innovative properties to ensure simple, error-free installation and maximum resistance to lateral forces.
- Hygienic weighing module ensures efficient cleaning
- High degree of process reliability and precision thanks to the innovative side-force-resistant system
- Quick and easy commissioning due to smart add-on parts
- Durable, reliable weighing solution with excellent corrosion resistance

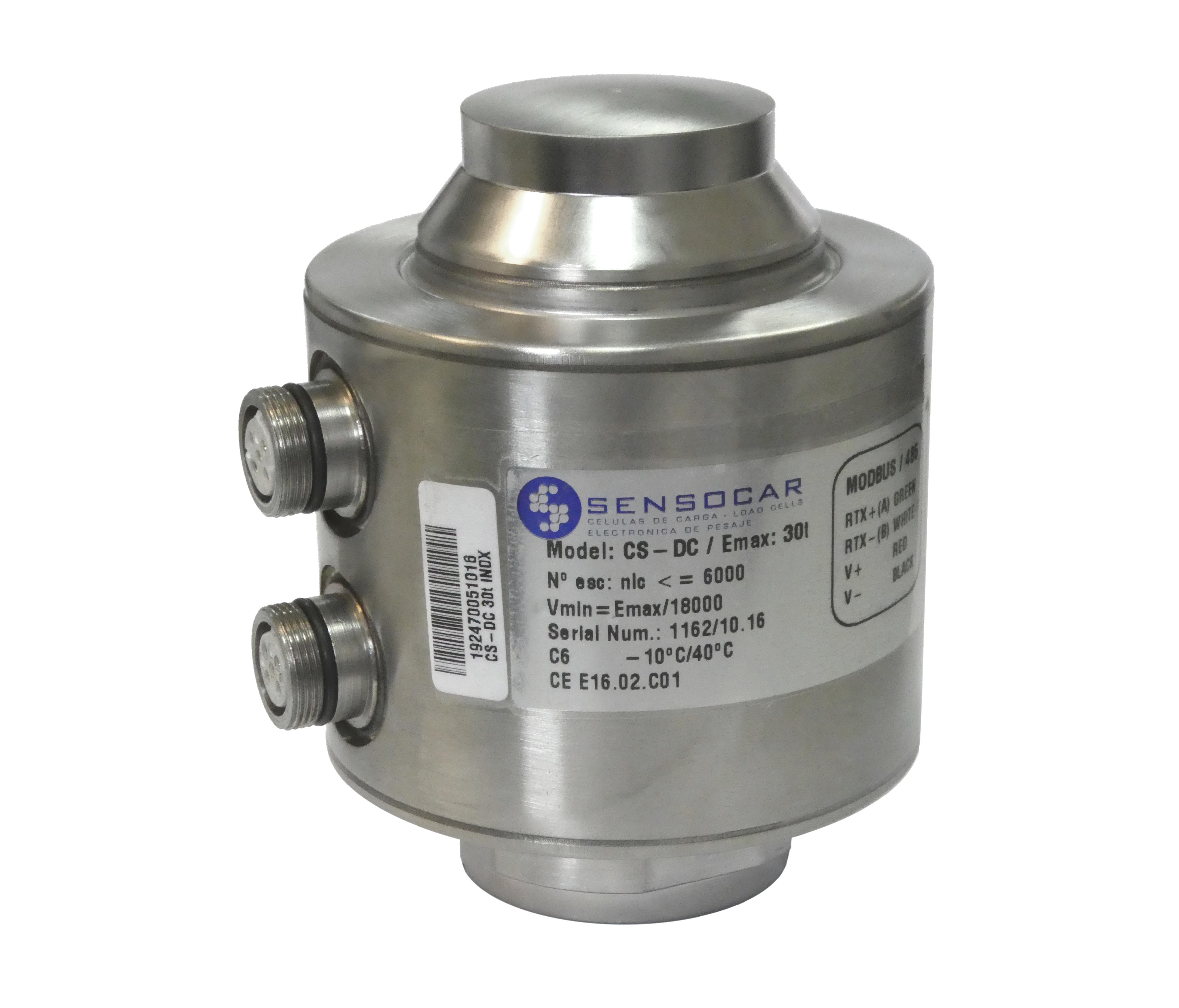

Sensocar CS Canister Load Cell: Highest-Accuracy Class and Lowest Height
The CS family load cells from Sensocar represents the premium range of weighbridge load cells.
They are canister-type compression load cells (also called rocker column type) and they are mostly used for weighbridge applications.
The CS family load cells includes:
- Model CS-A: For Analogue weighbridges.
- Model CS-DP (Digital with cable gland): For digital weighbridges, including IP-69K.
- Model CS-DC (Digital with connectors): Daisy Chain to the indicator. No junction box.
They are all stainless steel, fully welded. Certified at 6.000 divisions (C6 Accuracy Class). With gas dischargers to protect against atmospheric discharges.
It has one of the lowest heights of the market: 118,5 mm (166,5 mm including both top and bottom cups). This feature allows the load cell to be replaced in any existing weighbridge, thanks to a good adaptation into the dimensions of the existing supports.
